REAR MAP LIGHT

id091800112700


Purpose

•  The rear map light illuminates the area at the rear of the vehicle interior.

Function

•  When the room light switch for the front map light is in the ON position, the rear map light turns on.
•  The rear map light turns on according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the room light switch for the front map light is in the DOOR position.

Structure/Construction

•  A bulb type or LED type is available for the rear map light.
•  The rear map light is positioned in the rear part of the headliner.

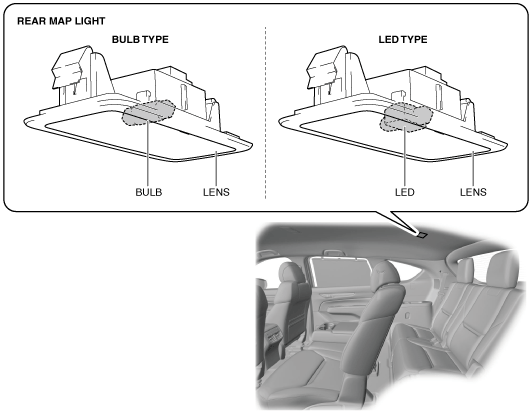

ac8wzn00000747

Operation


Room light switch for front map light operation (ON position)

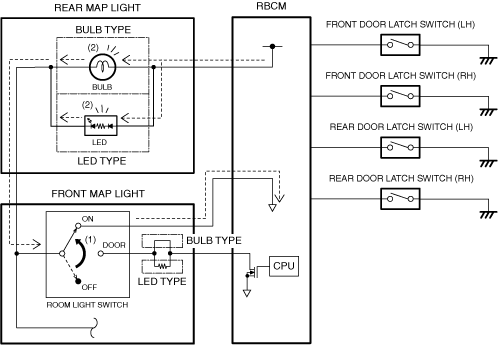

1.  When the room light switch for the front map light is in the ON position (1), the rear map light turns on (2).

Note
•  When the rear body control module (RBCM) receives a lock signal on the remote transmitter with the ignition switched off and all doors/liftgate closed, it automatically turns the rear map light off.
ac8wzn00001574


Room light switch for front map light operation (DOOR position)

Note
•  For the operation conditions, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)


Fail-safe

•  Not applicable
