LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE

id091800112900


Type-A


Auto Light System

•  There are two methods for personalizing the auto light system: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
―  Refer to the "CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE". (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
Using center display
―  Refer to the "CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Turn Light System

•  There are two methods for personalizing the turn light system: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
―  Refer to the "CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE". (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
Using center display
―  Refer to the "CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Coming Home Light

•  There are two methods for personalizing the coming home light: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
―  Refer to the "CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE". (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
Using center display
―  Refer to the "CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Leaving Home Light

•  There are two methods for personalizing the leaving home light: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
―  Refer to the "CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE". (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
Using center display
―  Refer to the "CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Room Light Control System

•  There are two methods for personalizing the room light control system: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
―  Refer to the "CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE". (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
Using center display
―  Refer to the "CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Running Light System

Using light switch

Function

Initial setting

Setting contents

Control module
The running light system function can be set.
On (running light illumination)
Off (running light non-illumination)/On (running light illumination)
Front body control module (FBCM)

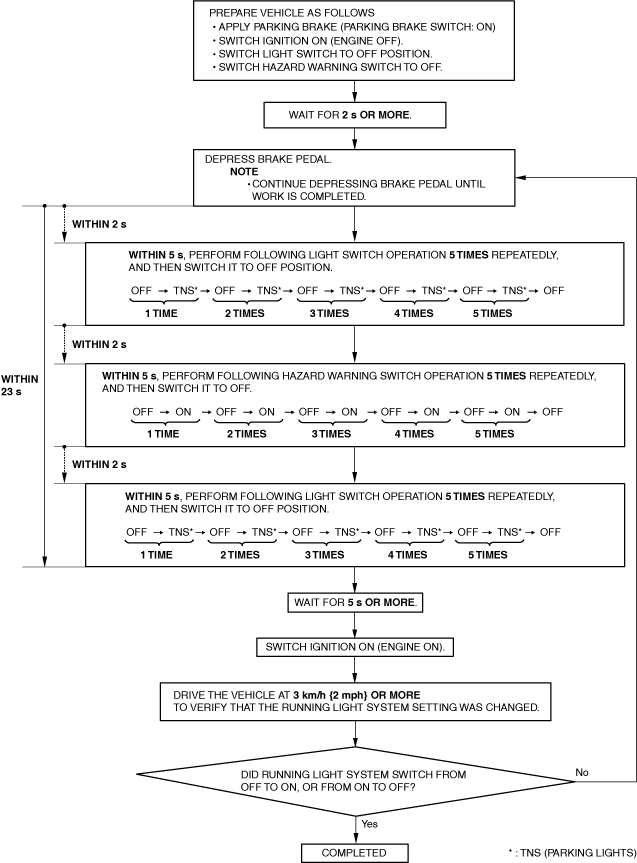

•  Perform the following procedure to change the running light illumination/non-illumination setting.
Note
•  Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
ac5wzw00008703


Type-B

Note
•  Refer to the [PERSONALIZATION FEATURES [(TYPE-B)]] in the workshop manual.
