STEERING SWITCH INSPECTION

id092000822600

Warning

• Handling the driver's air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Note

• When removing the driver's air bag module, it is necessary to rotate the steering wheel. If the ignition is switched OFF with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

Type-A

1. Switch the ignition ON (engine off or on).

2. Open the driver's door.

3. Switch the ignition OFF.

4. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5. Remove the driver's air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

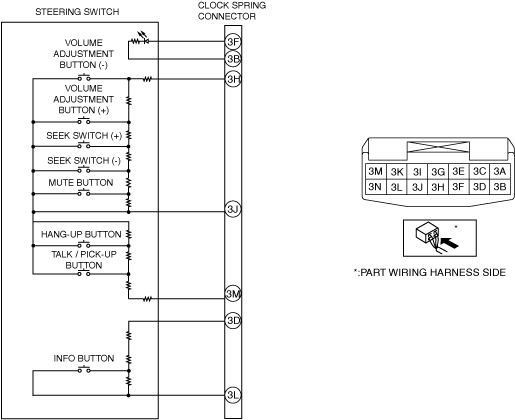

6. Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.

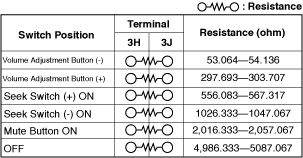

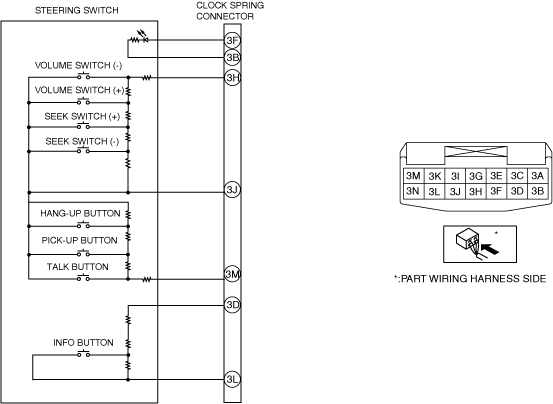

ac8wzw00004349

• If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

ac8wzw00004350

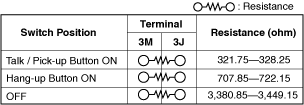

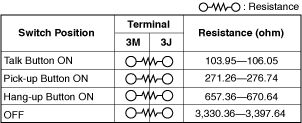

ac8wzw00004351

ac5wzw00010251

7. Apply battery positive voltage to steering switch terminal 3F, and connect terminal 3B to ground.

ac8wzw00003218

8. Verify that the LED illuminates.

• If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

Type-B
