WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION

id092100050100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Console side panel (rear console) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)

(2)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

3.  Disconnect the connector.

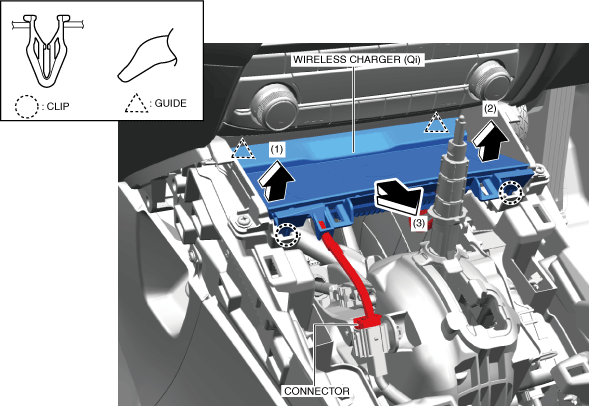

ac8wzw00004303

4.  Move the wireless charger (Qi) in the order of arrows (1) and (2) shown in the figure and remove the clips.

5.  Move the wireless charger (Qi) in the direction of arrow (3) shown in the figure and remove it while releasing the guides.

6.  Install in the reverse order of removal.
