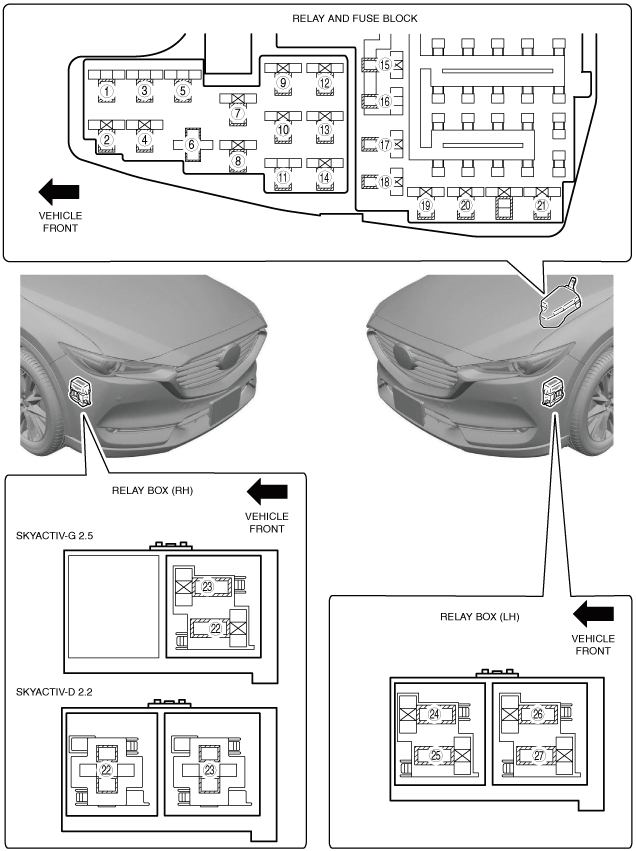

RELAY LOCATION
id092100800600
ac8wzw00004544
|
|
1
|
SKYACTIV-G 2.5
• Cooling fan relay No.3
|
|
2
|
Windshield wiper de-icer relay
|
|
3
|
DRL relay
|
|
4
|
Ignition relay (ACC_STAB)
|
|
5
|
Outlet relay
|
|
6
|
Front blower relay
|
|
7
|
TNS relay
|
|
8
|
Horn relay
|
|
9
|
Front fog light relay
|
|
10
|
ACC relay
|
|
11
|
Rear blower relay
|
|
12
|
Starter relay
|
|
13
|
Headlight HI relay
|
|
14
|
Ignition relay (IG1_STAB)
|
|
15
|
IG1 relay
|
|
16
|
Headlight LO relay No.1
|
|
17
|
Electric AT oil pump relay
|
|
18
|
SKYACTIV-G 2.5
• Sub relay
SKYACTIV-D 2.2
• Check connector
|
|
19
|
SKYACTIV-G 2.5
• Electric variable valve timing relay
|
|
20
|
Heated steering wheel relay
|
|
21
|
Rear window defogger relay
|
|
22
|
Cooling fan relay No.2
|
|
23
|
Cooling fan relay No.1
|
|
24
|
Main relay
|
|
25
|
Headlight LO relay No.2
|
|
26
|
A/C relay
|
|
27
|
SKYACTIV-G 2.5
• Fuel pump relay
SKYACTIV-D 2.2
• Blow-by heater relay
|
