TORQUE BOX REMOVAL [PANEL REPLACEMENT]

id098008607100

Symbol Mark

ac8wzb00000182

Removal Procedure

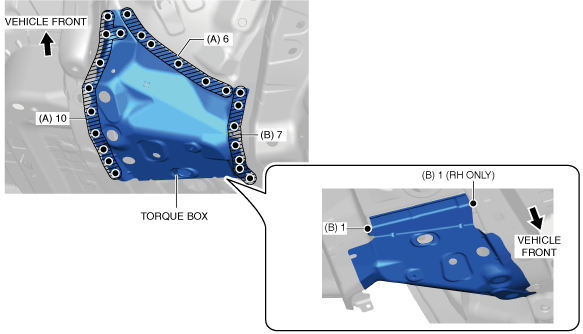

1.  Drill the spot welds in the 16 locations in area A shown in the figure.

2.  Drill the spot welds in area B (LH: 8 locations, RH: 9 locations) shown in the figure.

Note

•  When drilling the spot welds in area B (LH: 8 locations, RH: 9 locations) shown in the figure, do not drill through-holes in consideration of the workability when installing.

ac8wzb00000183

3.  Drill the 7 locations in area C shown in the figure from the interior.

ac8wzb00000184

4.  Remove the torque box.
