CORNER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008610500

Symbol Mark

ac8wzb00000204

Installation Procedure

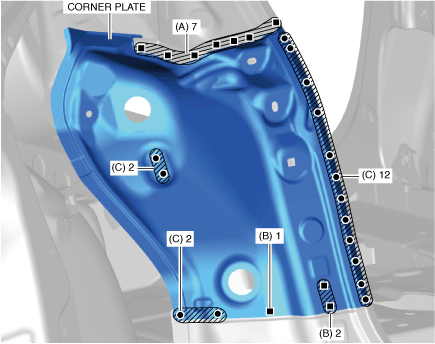

1.  Before installing the new part, drill holes for plug welding in 7 locations in area A, 3 locations in area B.

2.  When installing the new part, measure the dimensions of each part following the body dimensions and align with the basic dimension.

3.  After temporarily installing the new parts, make sure the related parts fit properly.

4.  Plug weld the 7 locations in area A show in the figure.

5.  Plug weld the 3 locations in area B show in the figure.

6.  Spot weld the 16 locations in area C shown in the figure and install the corner plate.

ac8wzb00000205
