ROOF PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744400

Symbol Mark

ac8wzb00000220

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

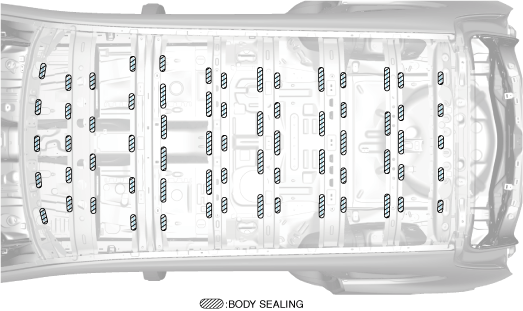

4.  Apply the body sealer to the position shown in the figure.

ac8wzb00000221

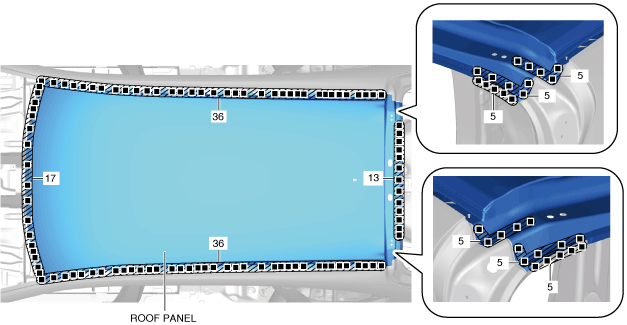

5.  Plug welds in the 132 locations shown in the figure and install the roof panel.
