REAR SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008801200

Symbol Mark

ac8wzb00000131

Removal Procedure

1.  Remove the floor side panel. (See FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT].)

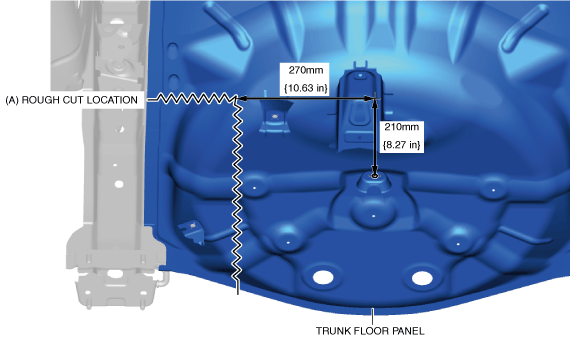

2.  Rough cut the area A shown in the figure.

Caution

•  Be careful not to damage crossmember No. 4 (front) and crossmember No. 4 (rear) component when rough cutting part A shown in the figure. Otherwise, the vehicle strength may become diminished.

ac8wzb00000132

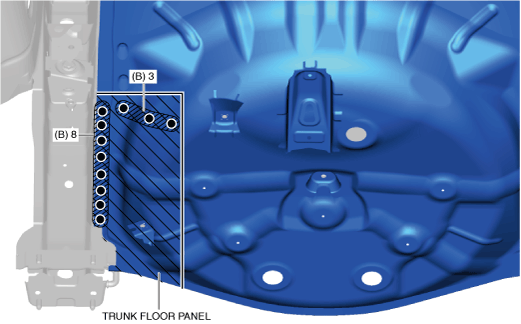

3.  Drill the spot welds in the 11 locations in area B shown in the figure.

ac8wzb00000133

4.  Remove a part (shaded area) of the trunk floor panel.

5.  Drill the spot welds in the 14 locations in area C shown in the figure.

ac8wzb00000134

6.  Remove the rear side frame.
