i-stop CONTROL

id111100000100

i-stop Control Outline

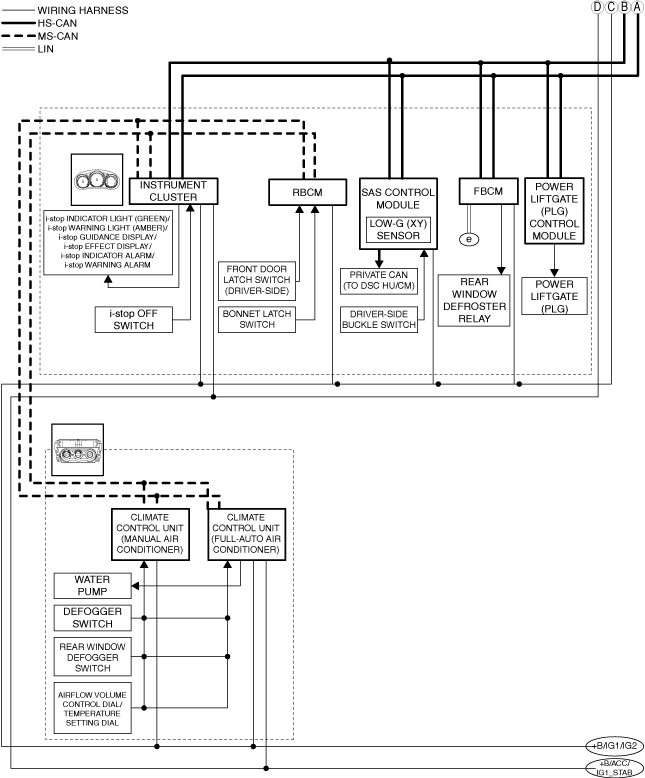

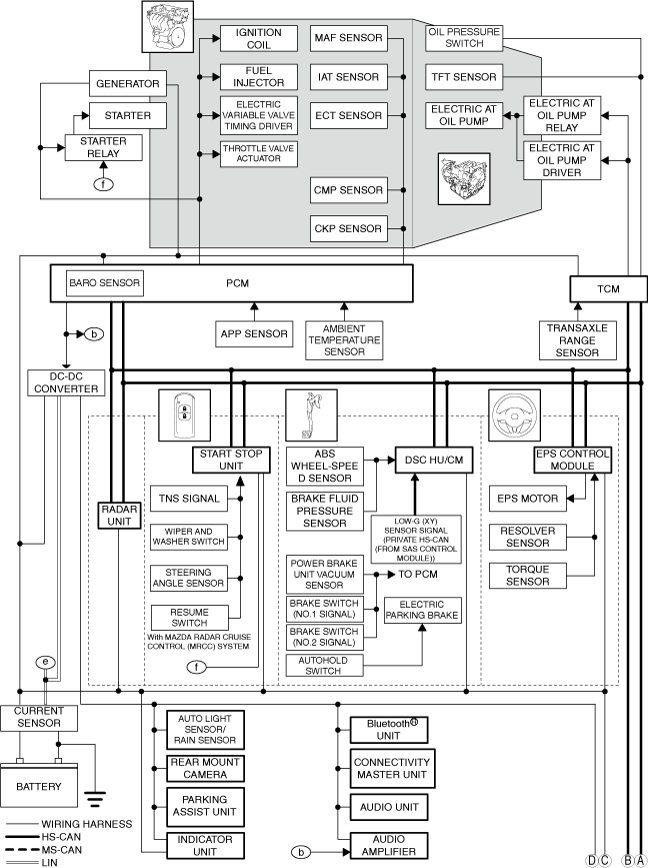

SKYACTIV-G 2.5

ac5wzn00005595

ac8wzn00001370

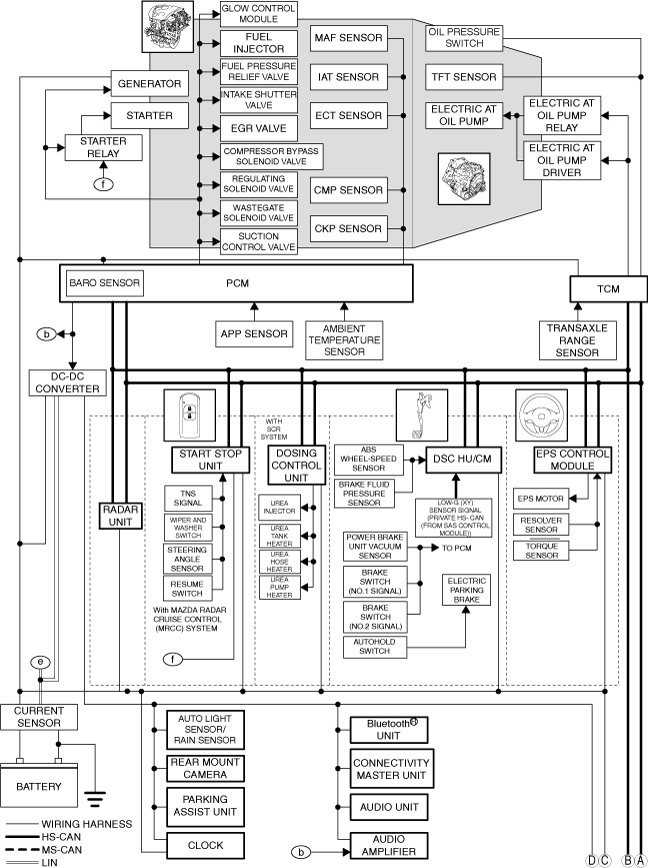

SKYACTIV-D 2.2

ac5wzn00005655

ac5wzn00005653

i-stop Control Modules

Module name	Reference
PCM	(See i-stop CONTROL [SKYACTIV-G 2.5].) (See i-stop CONTROL [SKYACTIV-D 2.2].) (See DC-DC CONVERTER CONTROL [SKYACTIV-G 2.5].) (See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].) (See i-stop WARNING ALARM [SKYACTIV-G 2.5].) (See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
DSC HU/CM	(See HILL LAUNCH ASSIST (HLA).)
TCM	(See ELECTRIC AT OIL PUMP [FW6A-EL].) (See ELECTRIC AT OIL PUMP [GW6A-EL, GW6AX-EL].)
Start stop unit	(See START STOP UNIT.)
EPS control module	(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
Climate control unit	(See CLIMATE CONTROL UNIT.)
SAS control module	(See SAS CONTROL MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See SAS CONTROL MODULE [STANDARD DEPLOYMENT CONTROL SYSTEM].)
Instrument cluster	(See INSTRUMENT CLUSTER.)
Front body control module (FBCM)	(See FRONT BODY CONTROL MODULE (FBCM).)
Rear body control module (RBCM)	(See REAR BODY CONTROL MODULE (RBCM).)
Power liftgate (PLG) control module	(See POWER LIFTGATE (PLG) CONTROL MODULE.)
