REDUCTION PLANETARY GEAR ASSEMBLY

id051700663900

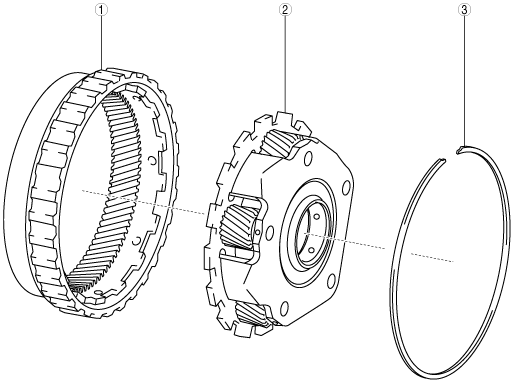

Structural View

bgw3ja00000467

1

Rear internal gear

2

Reduction planetary carrier

3

Snap ring (outer diameter approx. 142.5 mm {5.610 in})

Assembly Procedure

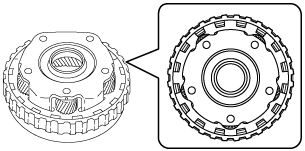

1. Assemble the reduction planetary carrier.

bgw3ja00000468

bgw3ja00000469

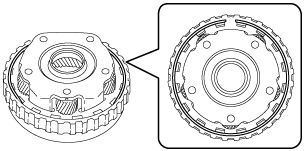

2. Assemble the snap ring.

Caution

• After assembling the snap ring, verify that the snap ring is securely inserted into the bottom of the snap ring groove.

Note

• Snap ring size: Outer diameter approx. 142.5 mm {5.610 in}

bgw3ja00000470

bgw3ja00000471

1	Rear internal gear
2	Reduction planetary carrier
3	Snap ring (outer diameter approx. 142.5 mm {5.610 in})
