ENGINE FRONT COVER [SKYACTIV-G 2.5T]
id0110q8000900
Purpose, Function
• The engine front cover covers the front of the engine to prevent engine oil spillage, noise leakage, and foreign material penetration.
Construction

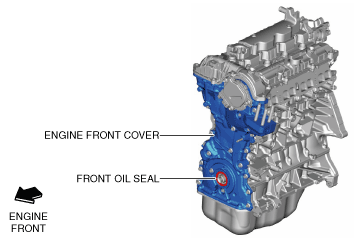

• The engine front cover is located in front of the engine.
• The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.

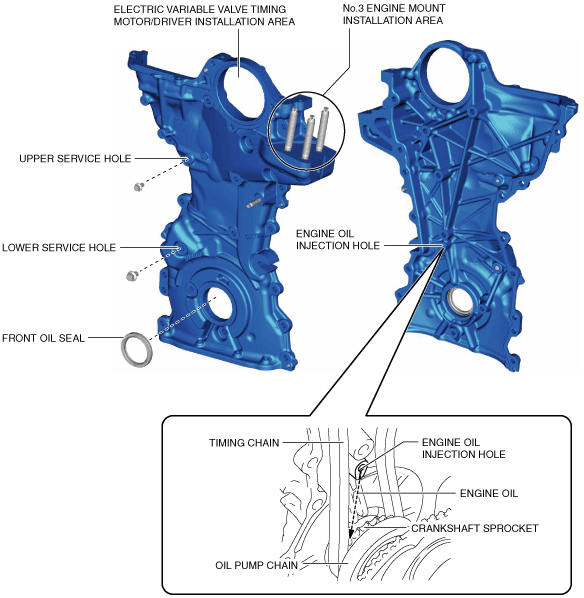

• The engine front cover has the following parts shown in the figure.
