ENGINE MOUNT [SKYACTIV-G 2.5T]


id0110q8001800


Purpose, Function

•  The engine mount secures the engine to the vehicle body, reducing vibration and noise. In addition, the engine drive force is transmitted efficiently to the powertrain by the engine mounts absorbing various forces while the vehicle is driven.

Construction

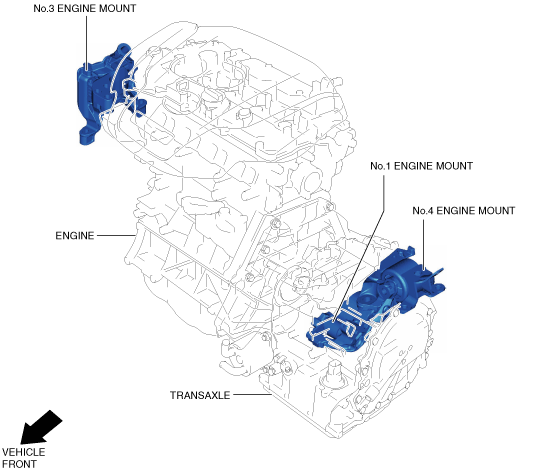

•  The three points at the front of the engine (No.3 engine mount), one side of the transaxle (No.1 engine mount), and the rear upper part of the transaxle (No.4 engine mount) are supported.
ac9uun00001594

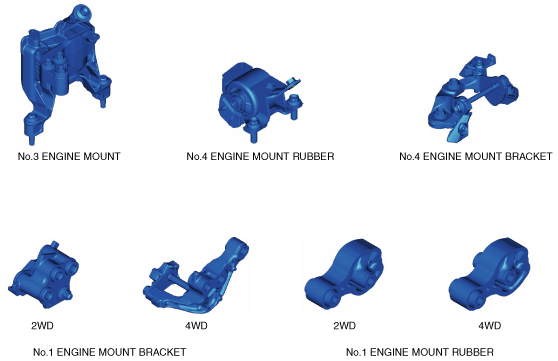

•  The metal parts of the engine mount bracket and engine mount rubber are made of aluminum alloy to achieve weight reduction.
ac9uun00001595

Operation

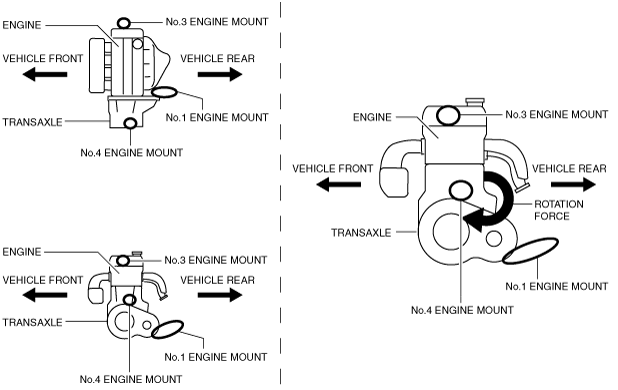

•  By locating the one side of the transaxle (No.1 engine mount) to the transaxle lower end, the No.1 engine mount absorbs the rotation force to the powertrain generated during engine torque fluctuation. The layout is designed to disperse the rotation force to the front/back directions of the engine.
am2zzn00003064
