CYLINDER HEAD COVER [SKYACTIV-G 2.5T]
id0110q8105000
Purpose, Function
• The cylinder head cover prevents foreign material penetration, engine oil spatter, and reduces engine valve system noise.
• The oil baffle plate reduces engine oil consumption by separating the engine oil from the blow-by gas.
• The vacuum chamber built into the cylinder head cover stores the vacuum generated by the vacuum pump operation to perform smooth boost control.
Construction
• The lightweight cylinder head cover is made of hard plastic with excellent noise absorption.
• The cylinder head cover has an integrated vacuum chamber.

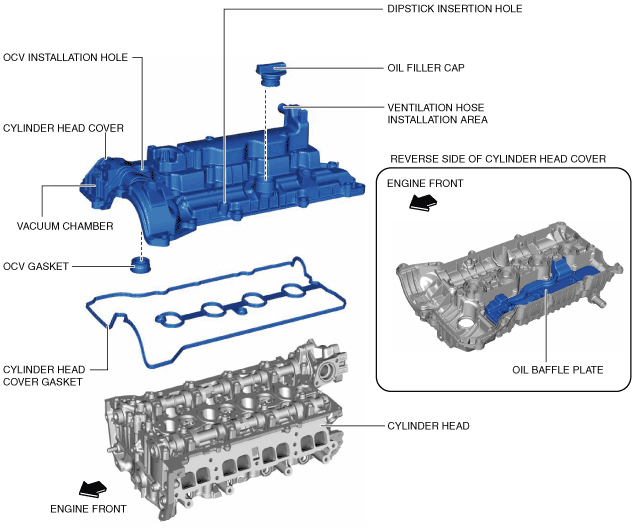

• The cylinder head cover consists of the following parts:
