LUBRICATION SYSTEM [SKYACTIV-G 2.5T]

id0111q8002100

Outline

• The entire oil passage in the engine has been shortened to reduce pressure loss.

• A chain drive type vane pump has been adopted to reduce oil pump drive force.

• An oil shower pipe has been adopted to reduce sliding resistance.

• An engine oil solenoid valve has been adopted to reduce oil pump drive resistance.

Structure

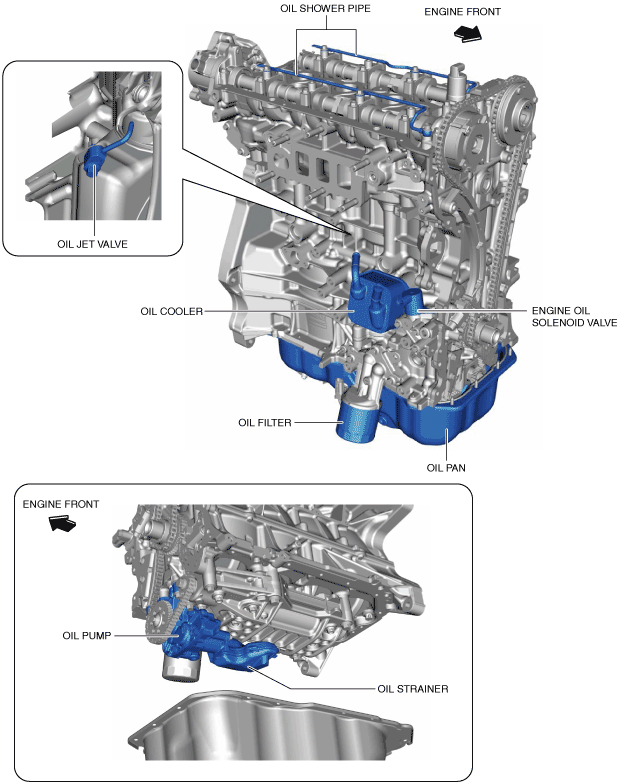

Structural view

ac9uun00001579

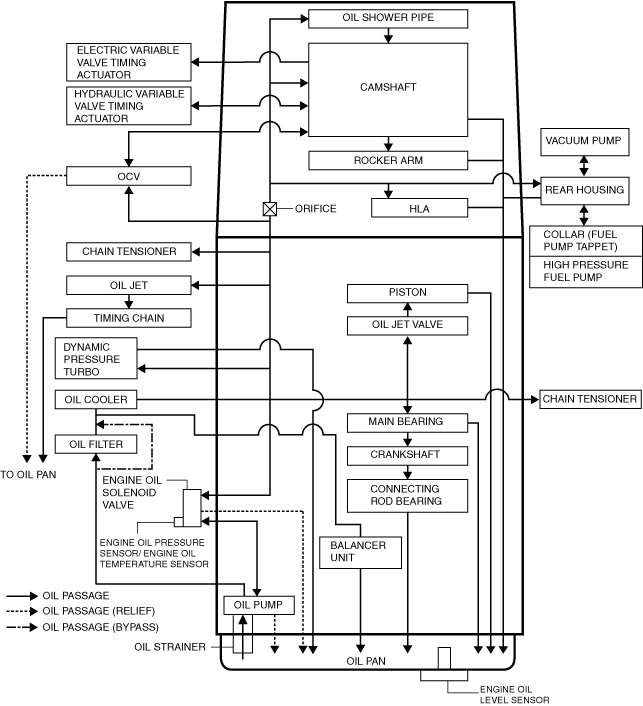

Flow view

ac9uun00003056

• Consists of the following parts:

Oil filter	(See OIL FILTER [SKYACTIV-G 2.5T].)
Oil cooler	(See OIL COOLER [SKYACTIV-G 2.5T].)
Oil pan	(See OIL PAN [SKYACTIV-G 2.5T].)
Oil strainer	(See OIL STRAINER [SKYACTIV-G 2.5T].)
Oil pump	(See OIL PUMP [SKYACTIV-G 2.5T].)
Oil jet valve	(See OIL JET VALVE [SKYACTIV-G 2.5T].)
Engine oil solenoid valve	(See ENGINE OIL SOLENOID VALVE [SKYACTIV-G 2.5T].)
Oil shower pipe	(See OIL SHOWER PIPE [SKYACTIV-G 2.5T].)
