COOLING FAN COMPONENT [SKYACTIV-G 2.5T]

id0112q5003200

Purpose, Function

• The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

• The flaps improve cooling efficiency from the medium to high speed range.

Structure

Structural view

• The cooling fan component is located on the rear of the radiator.

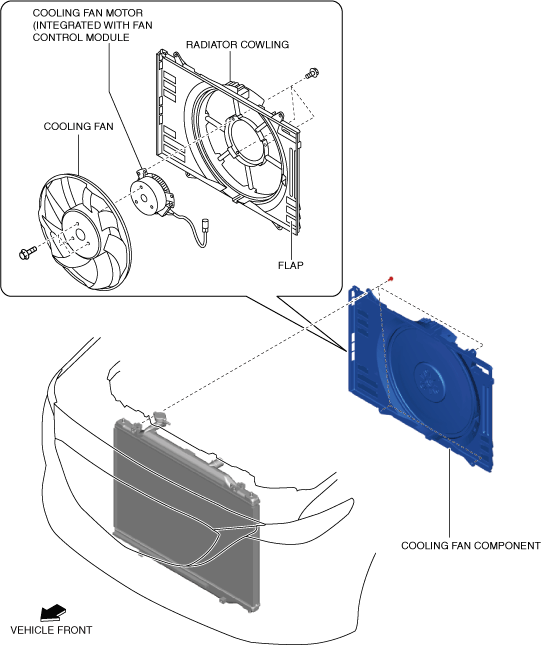

• The cooling fan component consists of the following parts:

ac9uun00001657

• Flaps have been adopted to the radiator cowling to improve cooling efficiency from the medium to high speed range.

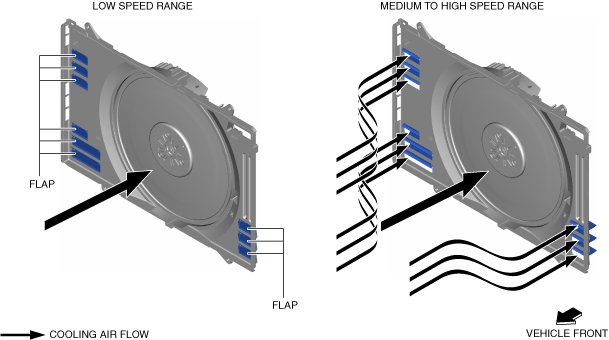

The flaps begin to open by wind pressure in the medium to high speed range. The medium to high speed range cooling performance is improved by sending efficient cool air flow to the rear of the radiator.

ac9uun00001658

Operation

• For electrical fan control details, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 2.5T].)

Fail-safe

• Not applicable
