RADIATOR [SKYACTIV-G 2.5T]


id0112q5158500


Purpose, Function

•  The radiator disperses the engine coolant heat flowing internally by receiving air flow against the vehicle while it is driven or produced by the cooling fan.

Construction

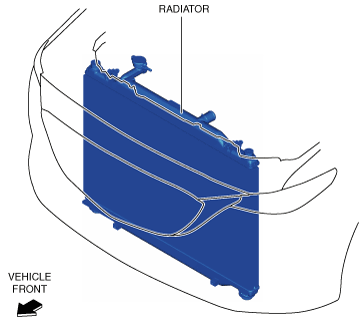

•  The radiator is located at the front part in the engine compartment.
ac9uun00001661
•  Vibration is absorbed via the four supporting mount rubbers attached to the radiator.
ac9uun00001662
•  A down-flow type radiator has been adopted.

Without oil cooler No.2

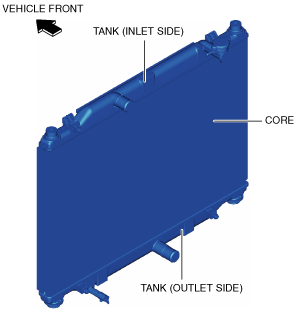

ac9uun00001663

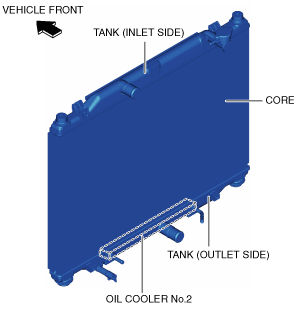

With oil cooler No.2

ac9uun00002506
•  Corrugated fins have been adopted to the core fins.
•  A plastic tank material and aluminum core material have been adopted to achieve weight reduction.
•  An oil cooler No.2 is built into the tank (outlet side). (With oil cooler No.2)(See OIL COOLER.)
