ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G 2.5T]

id0113q4189000

Purpose, Function

Accelerator pedal

• The driver's intention to start/accelerate can be transmitted by the accelerator pedal depression amount. The engine output required by the driver is proportional to the pedal operation amount.

• The accelerator pedal position sensor built into the accelerator pedal detects the accelerator pedal opening angle and transmits it to the PCM.

Kickdown switch

• The kickdown switch gives a feel of resistance as an approximate indication for a kickdown operation.

Construction

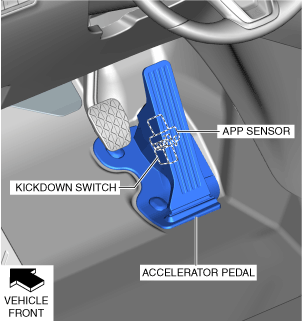

• The accelerator pedal has a built-in accelerator pedal position sensor and a kickdown switch.

ac9uun00002739

• For the APP sensor, refer to CONTROL SYSTEM. (See ACCELERATOR PEDAL POSITION (APP) SENSOR [SKYACTIV-G 2.5T].)

Kickdown switch

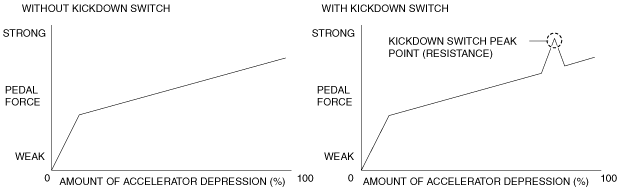

• Resistance can be felt while the accelerator pedal is being depressed. The accelerator pedal depression amount reaches 100% by further depressing the pedal. This resistance is an approximate indication of the kickdown.

am2zzn00003134

• Because the driver can determine the accelerator pedal depression amount from the change in the pedal depression amount (change in depression force), kickdown control is facilitated.

• The kickdown switch is only an approximate indication of the kickdown. An electrical signal is not sent/received by the kickdown switch.
