• The non-return valve provides improved safety by preventing fuel from returning to the fuel filler opening.
Construction
• The non-return valve is located on the fuel tank.

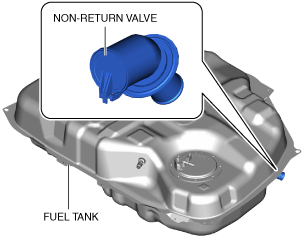

2WD
ac9uun00002792

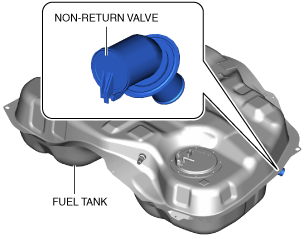

4WD
ac9uun00002793
• A single valve type has been adopted for the non-return valve.
ac9uun00002794
Operation
• Normally, the valve is closed as shown by the dotted outline of the value in the figure. When refueling, it opens as shown by the solid outline due to the force caused by the flow of fuel. When refueling is finished, the valve returns to the normal valve position by spring force.
