MAIN SILENCER [SKYACTIV-G 2.5T]


id0115q4101000


Purpose, Function

•  The main silencer reduces exhaust noise.

Construction

•  The main silencer is located at the rear of the vehicle, under the trunk compartment.
ac9uun00002800

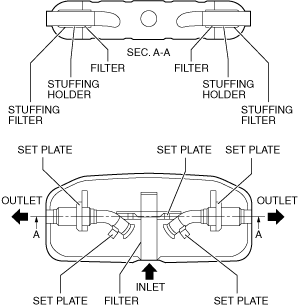

•  The main silencer consists of the filter, stuffing filter, stuffing holder, and set plate.
ac9uun00002801
•  The set plate is used for securing the stuffing filter and stuffing holder, and it is also used as a partition for sound insulation.
•  The stuffing holder supports the stuffing filter.
•  The stuffing filter becomes a passage for the exhaust gas.
•  The exhaust noise is reduced because the gas diffuses in each chamber of the silencer.
