PRESILENCER [SKYACTIV-G 2.5T]


id0115q4808800


Purpose, Function

•  The presilencer reduces exhaust noise.

Construction

•  The presilencer is located behind the catalytic converter (TWC).

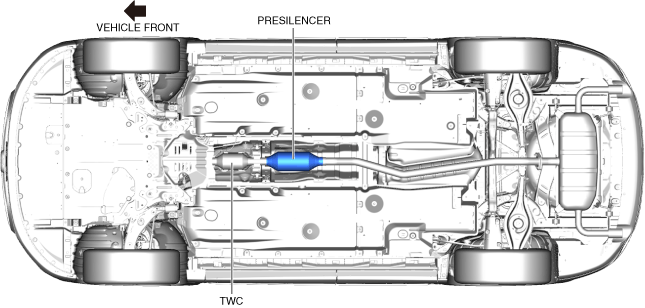

2WD

ac9uun00002810

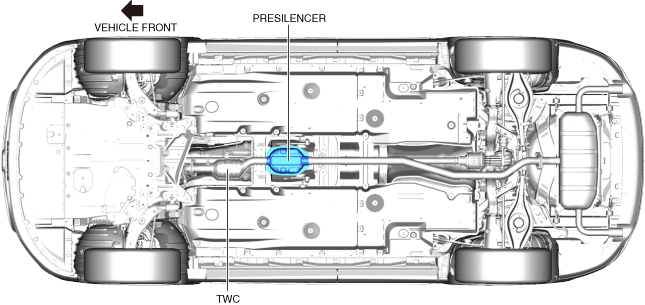

4WD

ac9uun00002811
•  The presilencer consists of the filter, stuffing, and stainless steel wool.

2WD

ac9uun00002812

4WD

ac9uun00002813
•  The exhaust gas passes inside the filter.
•  Exhaust noise is reduced as it is absorbed by the stuffing.
•  The stainless steel wool works as a cover to prevent the stuffing from flowing out.
