•  The rollover valve prevents fuel flow into the evaporative gas passage during sudden cornering or vehicle rollover.

•  The rollover valve is located inside the fuel tank.

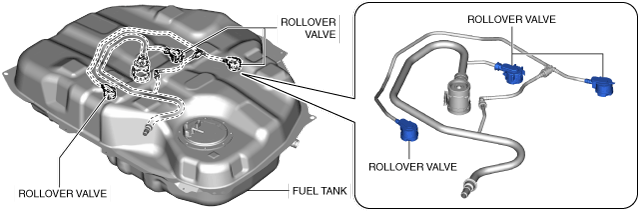

2WD: Taiwan

ac9wzn00002113

2WD: Except Taiwan

ac9uun00002846

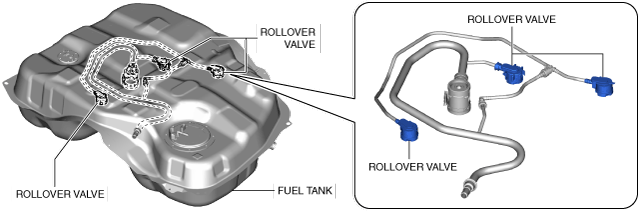

4WD: Taiwan

ac9wzn00002114

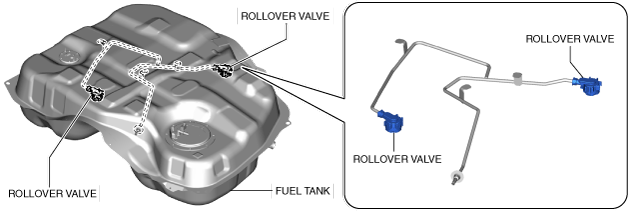

4WD: Except Taiwan

ac9uun00002847

•  The rollover valve consists of a float (valve), O-ring, and spring.

ac9uun00002848

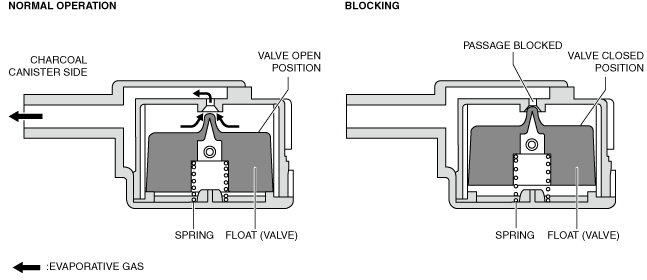

•  Because the float (valve) is normally open, evaporative gas in the fuel tank is introduced to the charcoal canister.

•  When the float (valve) is immersed in the fuel during sudden cornering or vehicle rollover, the passage is blocked by spring force and the ascending force of the float (valve).

ac9uun00002849
