FUEL SHUT-OFF VALVE [SKYACTIV-G 2.5T]

id0116q4155800

Taiwan

Purpose, function

•  Prevents fuel from flowing to the charcoal canister during tight turns or vehicle rollover.

•  Releases evaporative gas to the charcoal canister.

•  While refueling, the fuel shut-off valve closes to prevent a fuel overflow.

Construction

•  The fuel shut-off valve is built into the fuel tank.

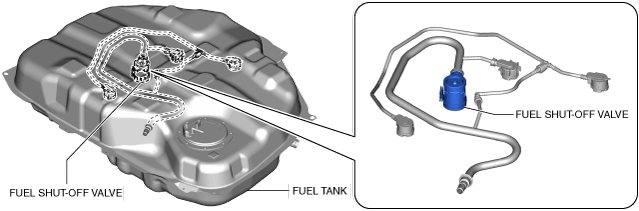

2WD

ac9uun00002860

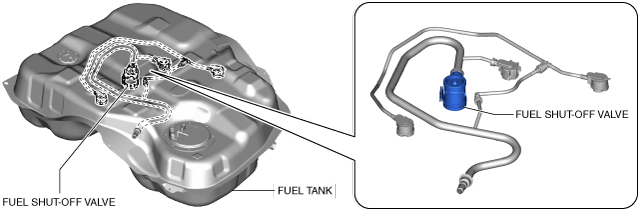

4WD

ac9uun00002861

•  The fuel shut-off valve consists of a float, spring, and valve.

ac9uun00002862

Operation

•  When the amount of fuel is high, the valve is closed by the ascending force of the float.

ac9uun00002863

•  When the amount of fuel is low, the valve opens under the float’s own weight to release evaporative gas to the charcoal canister.

ac9uun00002864

•  During sudden cornering or vehicle rollover, the valve is closed by the ascending force of the float and spring force.

ac9uun00002865
