DRIVE SELECTION SWITCH [SKYACTIV-G 2.5T]

id0121a5000200

Purpose

• The drive selection switch performs the drive selection switching operation.

Function

• Detects a drive selection (standard mode/sport mode) switching operation and sends it to the PCM and TCM through the instrument cluster as a drive selection signal.

ac9uun00001527

Construction

• The drive selection switch is located on the shift panel.

ac9wzn00001704

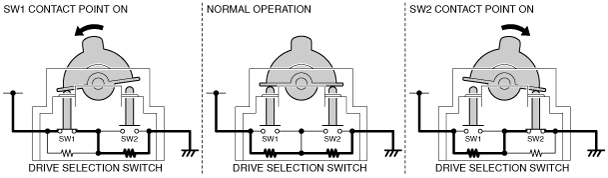

• A toggle-type switch has been adopted for the drive selection switch.

• The switch (SW1, SW2) being pressed is determined by combining the resistances of different resistance values.

amxuun00001357

Operation

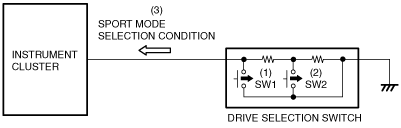

1. When the drive selection switch is pressed to the [SPORT] side (front side), contact point SW1 of the drive selection switch closes (1), and contact point SW2 closes (2) when the switch is pressed to the [–] side (rear side).

2. The instrument cluster detects the sport mode selection condition (3) based on the open/close of contact points SW1 and SW2 of the drive selection switch.

ac9uun00001529

Fail-safe

• Not applicable
