WASTEGATE VALVE POSITION SENSOR [SKYACTIV-G 2.5T]

id0140h0217700


Purpose

•  The wastegate valve position sensor detects the actual wastegate valve opening angle mainly as basic information for boost control.

Function

•  The wastegate valve position sensor sends the wastegate valve opening angle to the PCM as a wastegate valve position signal.

Wastegate valve position sensor characteristic

ac9uun00002355

Construction

•  The wastegate valve position sensor is built into the wastegate valve actuator.
•  A hall element has been adopted for the detection area of the wastegate valve position sensor.
•  The Hall element detects the change in magnetic flux occurring based on the movement of the permanent magnet (located on the rod), and outputs it as voltage.
ac9uun00002356

Operation

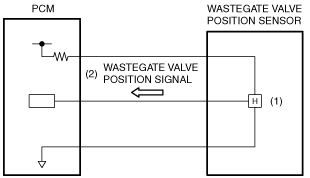

1.  The wastegate valve position sensor detects (1) the wastegate valve opening angle.

2.  The wastegate valve position sensor sends (2) the detected wastegate valve opening angle to the PCM as a wastegate valve position signal.

ac9uun00002357

Fail-safe

DTC No.

Fail-safe function
P2564:00
•  Stop the supercharging pressure control. (fully open the wastegate valve)
P2565:00
•  Stop the supercharging pressure control. (fully open the wastegate valve)
