REAR DIFFERENTIAL


id031400100600


Purpose, Function

•  A rear differential with an integrated coupling component has been adopted, reducing size and weight.
•  An aluminum differential carrier has been adopted, reducing weight.
•  Ball bearings have been adopted for bearings with relatively small loads, and tandem ball bearings have been adopted for the drive pinion bearing which has a large load applied to it. (VIN serial No. 200001—/300001— (Except European (L.H.D.) specs.), 500001—/600001— (European (L.H.D.) specs.))
•  The load applied to the bearing is dispersed by adopting tandem ball bearings, and while having the same load capacity of taper roller bearings, they reduce rolling resistance and improve fuel economy. (VIN serial No. 200001—/300001— (Except European (L.H.D.) specs.), 500001—/600001— (European (L.H.D.) specs.))

Construction


Structural view

VIN serial No. 100001—

ac5uun00000015

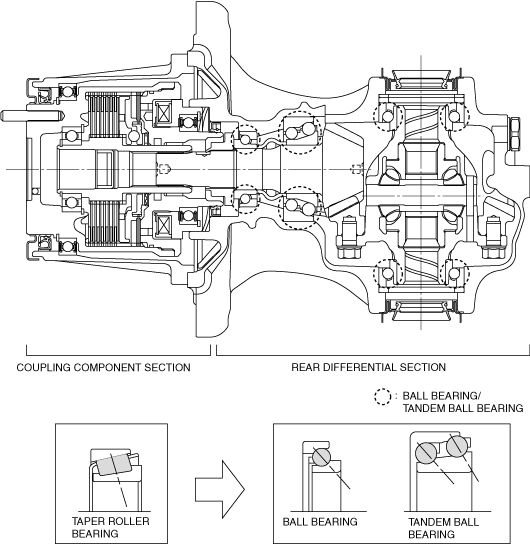

VIN serial No. 200001—/300001— (Except European (L.H.D.) specs.), 500001—/600001— (European (L.H.D.) specs.)

ac5uun00002832
