TRANSFER


id031600140100


Purpose, Function

•  A transfer with simple, one-axis construction has been adopted for size and weight reduction.
•  A thinner transfer case has been adopted for weight reduction.
•  By changing the bearings in the transfer from taper roller bearings to ball bearings/tandem ball bearings, rolling resistance is reduced and fuel economy is improved. (VIN serial No. 200001—/300001— (Except European (L.H.D.) specs.), 500001—/600001— (European (L.H.D.) specs.))

Construction


Structural view

VIN serial No. 100001—

ac4ccn00000847

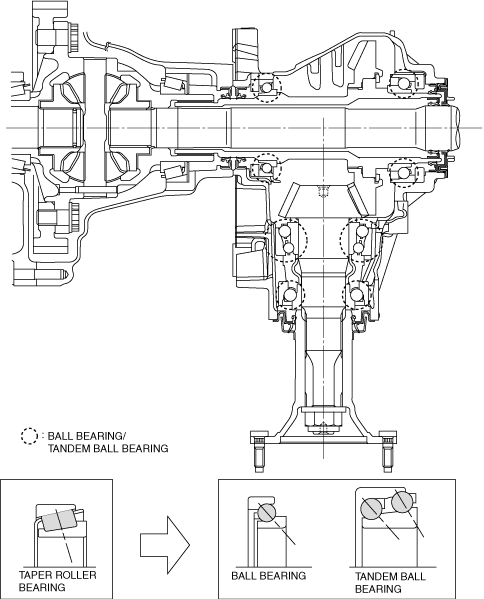

VIN serial No. 200001—/300001— (Except European (L.H.D.) specs.), 500001—/600001— (European (L.H.D.) specs.)

ac5uun00002852
