TCS/DSC INDICATOR LIGHT
id041500108900
Purpose/Function
• The TCS/DSC indicator light, built into the instrument cluster, informs the driver of the following vehicle conditions.
-
― TCS is operating. (Drive wheel is slipping.)
― DSC is operating. (Vehicle side-slip condition.)
― Roll over mitigation (ROM) is operating.
― Trailer stability assist (TSA) is operating.
― DSC system malfunction.
Operation
• When the DSC system and CAN lines are normal, the TCS/DSC indicator light illuminates for approx. 3.0 s when the ignition is switched to ON to check the light function. When the system is malfunctioning, the TCS/DSC indicator light remains illuminated.
• When the TCS, DSC or roll over mitigation (ROM) are non-operational, operational and malfunctioning, the TCS/DSC indicator light operates according to the following table.

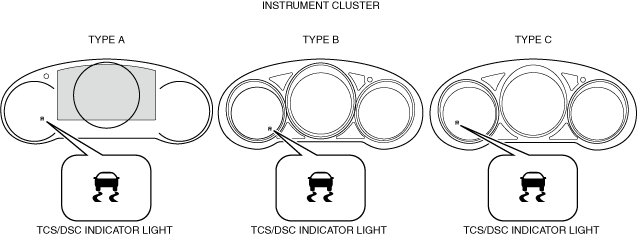

TCS/DSC indicator light operation
|
Item
|
TCS/DSC indicator light
|
|
TCS, DSC, and roll over mitigation (ROM) not operating
|
Not illuminated
|
|
TCS operating
|
Flashes (0.5 s intervals)
|
|
DSC operating
|
|
Roll over mitigation (ROM) operating
|
|
Trailer stability assist (TSA) operating
|
|
DSC system malfunction
|
Illuminated
|
Fail-safe
• Function not equipped.
