REFRIGERANT LINE
id071100002400
Purpose
• The refrigerant lines connect each of the parts in the refrigerant cycle.
Structure/Construction
• Block-type piping has been adopted to the pipe connection, improving the efficiency of the removal/installation related servicing.
• The pipes in the piping system consist of the following parts.
-
― Front cooler hose (HI)
― Front cooler hose (LO)
― Front cooler pipe (HI)
― Front cooler pipe (LO)
― Rear cooler pipe
• The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).
• A high-pressure charging valve is located on the front cooler hose (HI) and a low-pressure charging valve is located on the front cooler hose (LO).

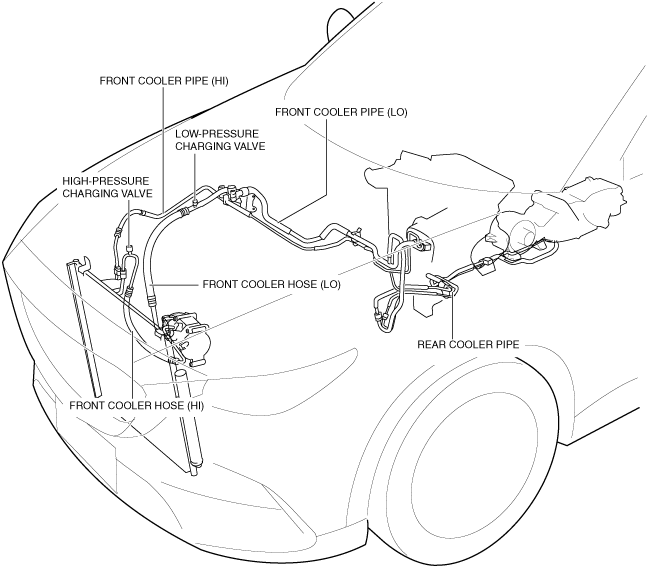

L.H.D.
R.H.D.
Fail-safe
• Not applicable
