•  The solar radiation sensor converts the detected solar radiation amount to an electric signal.

•  A photodiode (light receiving diode) has been adopted for the solar radiation sensor.

ac9wzn00001566

•  The solar radiation sensor is located on the instrument cluster.

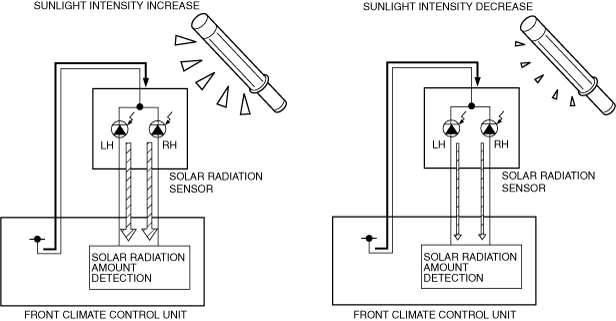

•  The solar radiation sensor detects the solar radiation amount using the characteristic of the photodiode (light receiving diode) which flows current when the light strikes the semi-conductor part of the photodiode. The generated electrical current increases if the sunlight intensity increases, and decreases if the sunlight intensity decreases.

•  Not applicable
