AIR INTAKE ACTUATOR

id074000004800

Purpose

• The air intake actuator opens/closes the air intake door in the blower unit to switch the air intake.

Function

Door open/close function

• The door open/close function opens/closes the air intake door in the FRESH or RECIRCULATE positions.

Door position detection function

• The door position detection function fluctuates the potentiometer voltage value which is linked to the air intake actuator motor drive.

Structure/Construction

• A potentiometer-type air intake actuator has been adopted.

• The air intake actuator is located on the blower unit.

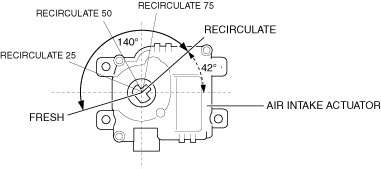

• The operation range of the air intake actuator is as indicated in the diagram.

ac9wzn00001667

Operation

• For the air intake actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)

Fail-safe

• Not applicable
