•  The cabin temperature sensor converts the detected cabin temperature to an electric signal.

•  A thermistor-type cabin temperature sensor has been adopted.

ac9wzn00001134

•  The cabin temperature sensor is installed to the lower panel (driver’s side).

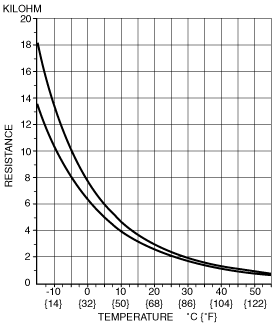

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and increases if the temperature decreases.

•  Not applicable
