•  The side air bag sensor detects an impact during a lateral collision.

•  The side air bag sensor converts the detected impact to an electrical signal.

•  The side air bag sensor is built into the crash sensor.

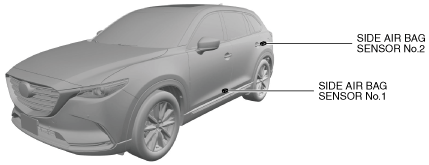

•  The side air bag sensor No.1 is located in the B-pillar in the lower part of the pillar.

•  The side air bag sensor No. 2 is located in the C-pillar in the lower part of the pillar.

•  For the side air bag sensor operation, refer to the [AIR BAG SYSTEM]. (See AIR BAG SYSTEM.)

•  Not applicable
