SEAT BELT
id081100500100
Outline
Except Australian specs.
-
• Three-point front seat belts with the following functions for front seat passengers have been adopted.
-
― ELR (Emergency Locking Retractor: emergency locking mechanism)
― Load limiter
• Three-point second-row seat belts with the following functions for second-row passengers (left and right seats) adopted.
-
― ELR
• Three-point second-row seat belt with the following functions for second-row passenger (center seat) adopted.
-
― ELR
• Three-point third-row seat belts with the following function for third-row passenger adopted.
-
― ELR
Australian specs.
-
• Three-point front seat belts with the following functions for front seat passengers have been adopted.
-
― ELR (Emergency Locking Retractor: emergency locking mechanism)
― Load limiter
• Three-point second-row seat belts with the following functions for second-row passengers (left and right seats) adopted.
-
― ALR
― ELR
• Three-point second-row seat belt with the following functions for second-row passenger (center seat) adopted.
-
― ELR
• Three-point third-row seat belts with the following function for third-row passenger adopted.
-
― ELR
Function
• The seat belts are belt type safety devices which restrain the occupants in their seats.
• The seat belt prevents the driver and the passenger from being thrown from the seat and injured due to an emergency vehicle stop or impact by being hit.
• The specifications for each seat belt are as indicated in the table.
Except Australian specs.
|
Seat belt
|
Type
|
Function
|
|
Front seat belt (Driver-side, passenger-side)
|
Three-point
|
• Front pre-tensioner seat belt
• ELR
• Load limiter
|
|
Second-row seat belt (LH/RH)
|
Three-point
|
• ELR
|
|
Second-row seat belt (center)
|
Three-point
|
• ELR
|
|
Third-row seat belt
|
Three-point
|
• ELR
|
Australian specs.
|
Seat belt
|
Type
|
Function
|
|
Front seat belt (Driver-side, passenger-side)
|
Three-point
|
• Front pre-tensioner seat belt
• ELR
• Load limiter
|
|
Second-row seat belt (LH/RH)
|
Three-point
|
• Rear pre-tensioner seat belt
• ALR
• ELR
|
|
Second-row seat belt (center)
|
Three-point
|
• ELR
|
|
Third-row seat belt
|
Three-point
|
• ELR
|
Structure/Construction/Operation

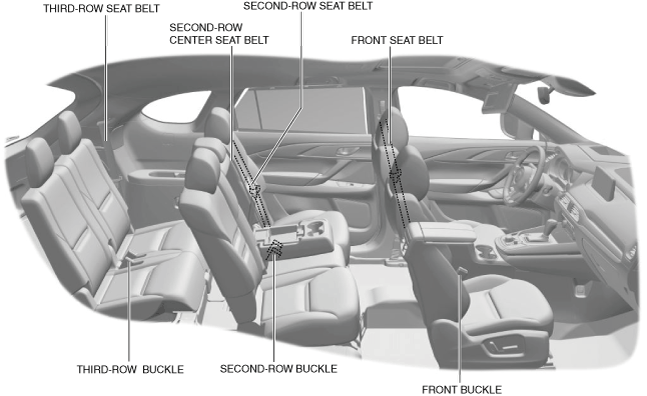

Structural view

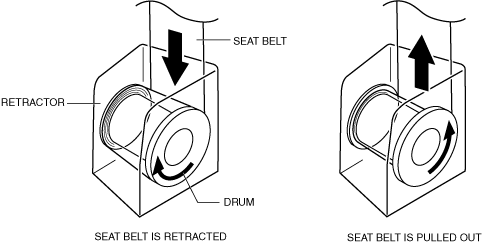

• For the three-point seat belt, the seat belt is secured to the drum in the retractor and wrapped.
• The seat belt is pulled out or retrieved by the rotation of the drum to adjust the length of the seat belt.

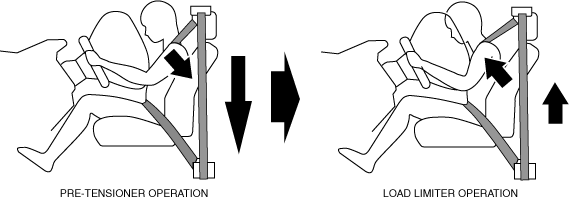

Load limiter
-
• When a certain amount of force is applied to the seat belt by an occupant moving forward by inertia force after the pre-tensioner seat belt operates, the locking base in the retractor is unlocked, the seat belt pulls out to mediate the pressure of the seat belt against the occupant.
ELR (Emergency Locking Retractor)
-
• If a sudden force is applied to a seat belt by an occupant moving forward by inertia force due to a vehicle collision or sudden braking, the locking base in the retractor is locked to prevent (lock) the seat belt from being pulled out.
ALR (Automatic Locking Retractor)
-
• When the seat belt is pulled out and fastened, the ALR locks the seat belt at that length and it cannot be pulled out any more.
• The ALR is mainly used for installing a child-restraint.
Front pre-tensioner seat belt
-
Rear pre-tensioner seat belt
-
Fail-safe
• Not applicable
