POWER WINDOW SYSTEM

id091200012200

Outline

Function

Manual open/manual close function

•  When the power window main switch or subswitch is operated for manual operation, the front door glass/rear door glass performs manual open/manual close operation.

Auto open/auto close function

With auto-open/close function for driver-side window only

•  When the power window main switch is operated for auto operation, the driver's side front door glass performs auto open/auto close operation.

With auto-open/close function for all windows

•  When the power window main switch is operated for auto operation, all door glass perform auto open/auto close operation.

•  When the power window subswitch is operated for auto operation, the passenger's side front door glass/rear door glass performs auto open/auto close operation.

IG OFF timer function

•  The front door glass/rear door glass can be opened/closed using the power window main switch for approx. 40 s after the ignition is switched from ON (engine on or off) to ACC or OFF.

Auto reverse pinch protection function

•  If an obstruction by a foreign object is detected during the auto close operation, the operation changes from close to open.

Fully-closed position record function (With auto-open/close function)

•  The power window control module records the fully-closed position of the front door glass/rear glass so that the auto reverse pinch protection function does not operate when the front door glass/rear glass is fully closed.

Structure/Construction

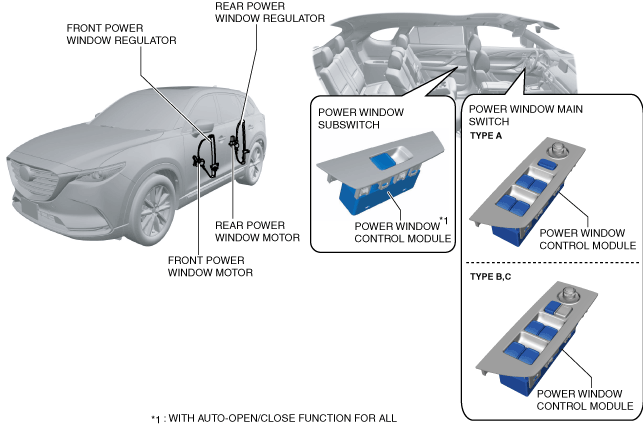

Structural view

ac9wzn00001036

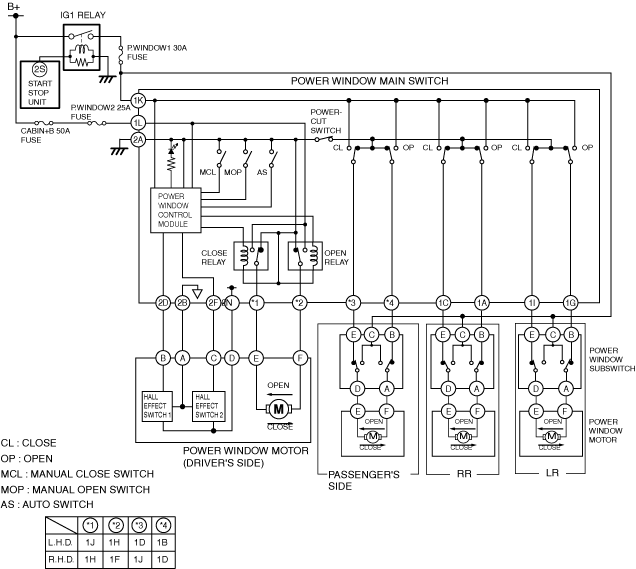

System wiring diagram

With auto-open/close function for driver-side window

ac9wzn00001040

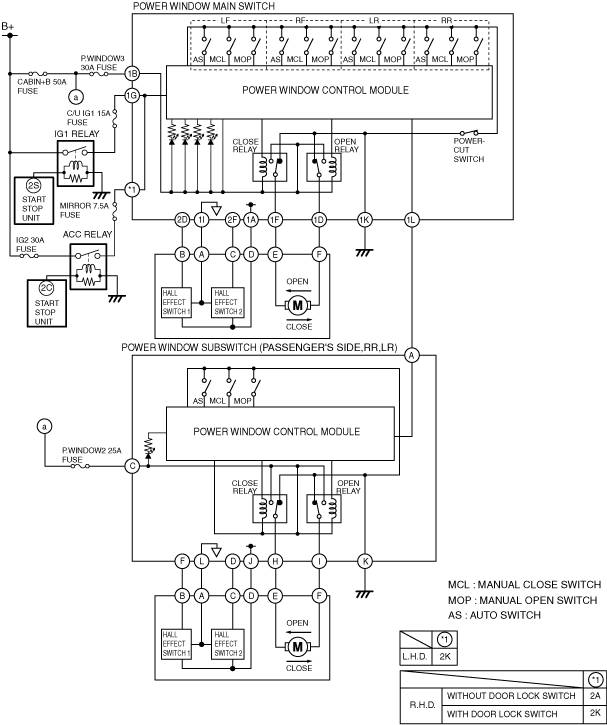

With auto-open/close function for all windows

ac9wzn00001781

Operation

Operation of driver's side manual open/close function (Example: manual close operation)

With auto-open/close function for driver-side window

1.  When the power window main switch is operated for manual close operation, the manual close switch is switched (1).

2.  When the power window control module detects a manual close signal, current flows to the close relay (2) and the close relay turns on (3).

3.  When the close relay turns on, the power window motor (driver's side) performs close operation (4).

ac9wzn00001042

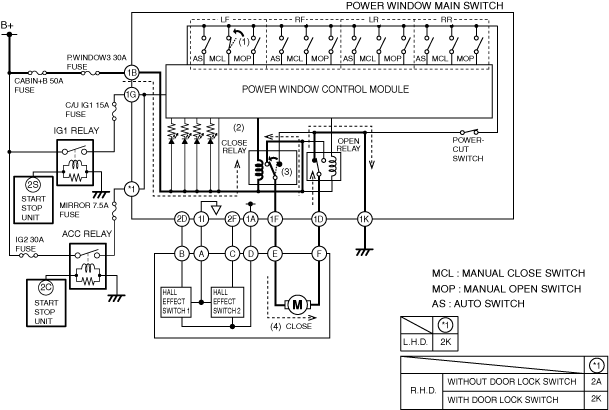

With auto-open/close function for all windows

1.  When the power window main switch is operated for manual close operation, the manual close switch is switched (1).

2.  When the power window control module detects a manual close signal, current flows to the close relay (2) and the close relay turns on (3).

3.  When the close relay turns on, the power window motor (driver's side) performs close operation (4).

ac9wzn00001043

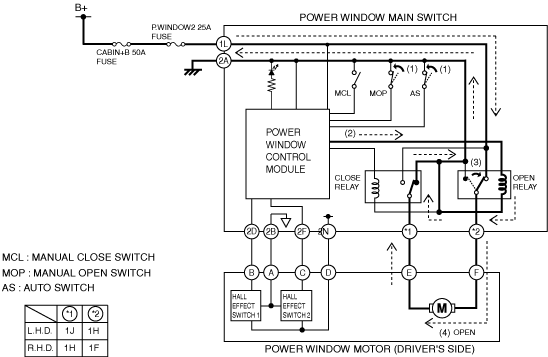

Operation of auto open/close function (Example: auto open operation)

With auto-open/close function for driver-side window

1.  When the power window main switch is operated for auto open operation, the auto switch and the manual open switch are switched (1).

2.  When the power window control module detects an auto open signal, current flows to the open relay (2) and the open relay turns on (3).

3.  When the open relay turns on, the power window motor (driver's side) performs auto open operation (4).

ac9uun00001802

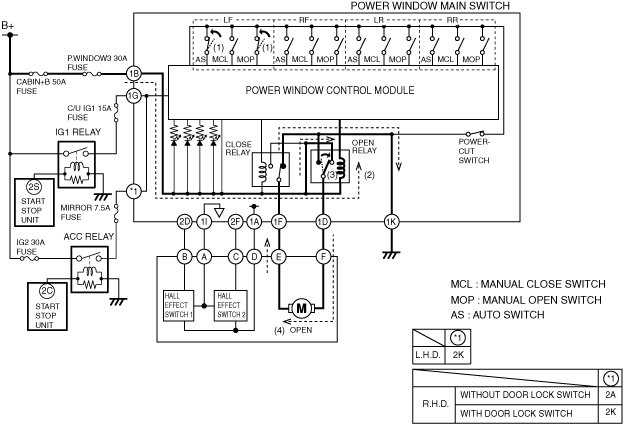

With auto-open/close function for all windows

1.  When the power window main switch is operated for auto open operation, the auto switch and the manual open switch are switched (1).

2.  When the power window control module detects an auto open signal, current flows to the open relay (2) and the open relay turns on (3).

3.  When the open relay turns on, the power window motor (driver's side) performs auto open operation (4).

ac9wzn00001044

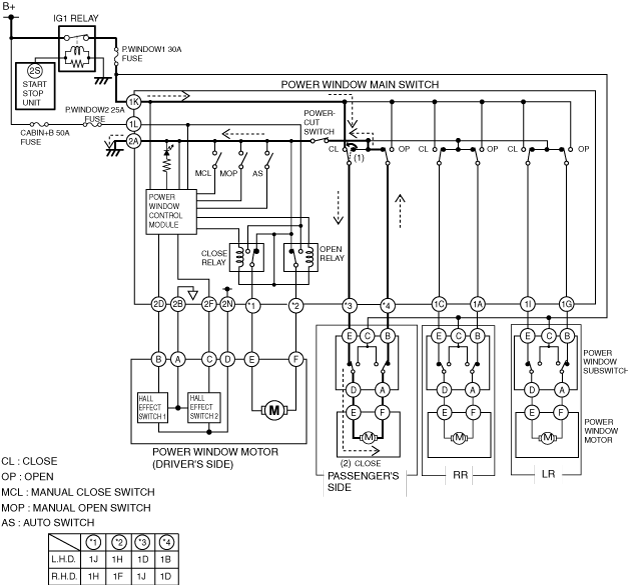

Operation of front passenger's side and rear manual open/close function from driver's side (Example: front passenger's side close operation)

With auto-open/close function for driver-side window

1.  When the passenger's side switch is operated for close operation by the power window main switch, the close switch is switched (1) and the power window motor (passenger's side) performs close operation (2).

ac9wzn00001782

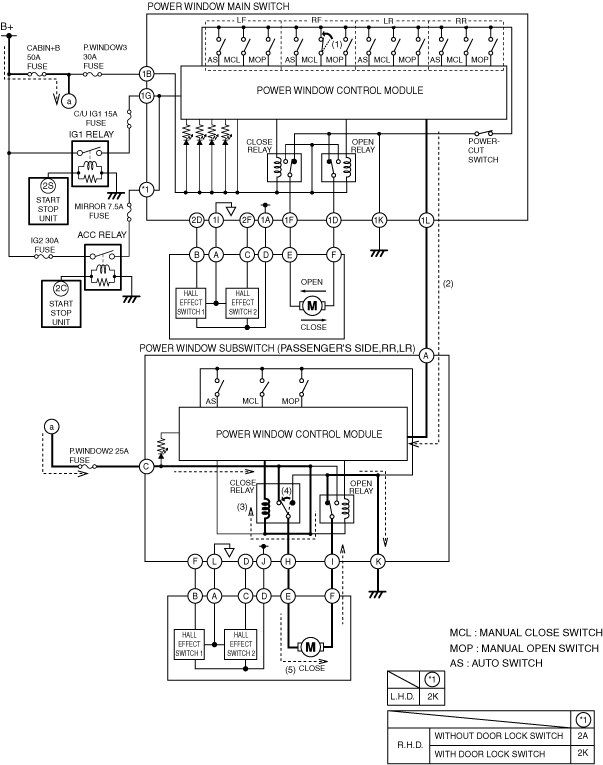

With auto-open/close function for all windows

1.  When the passenger's side switch is operated for manual close operation by the power window main switch, the manual close switch is switched (1).

2.  When the power window control module on the power window subswitch side detects a manual close signal (2), current flows to the close relay (3) and the close relay turns on (4).

3.  When the close relay turns on, the power window motor (driver's side) performs a close operation (5).

ac9wzn00002139

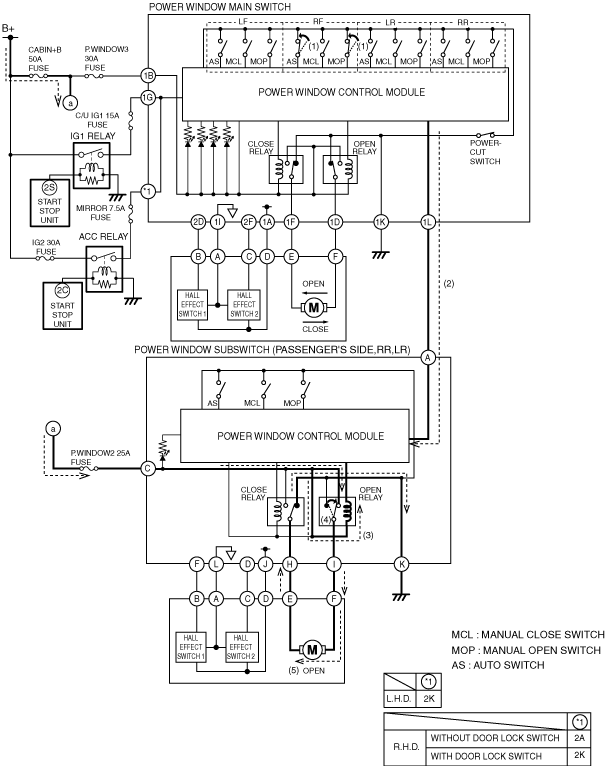

Operation of front passenger's side and rear auto open/close function from driver's side (Example: front passenger's auto open operation)

With auto-open/close function for all windows

1.  When the passenger's side switch is operated for auto open operation by the power window main switch, the auto switch and the manual open switch are switched (1).

2.  When the power window control module on the power window subswitch side detects an auto open signal (2), current flows to the open relay (3) and the open relay turns on (4).

3.  When the open relays turn on, the power window motor (driver's side) performs auto open operation (5).

ac9wzn00002140

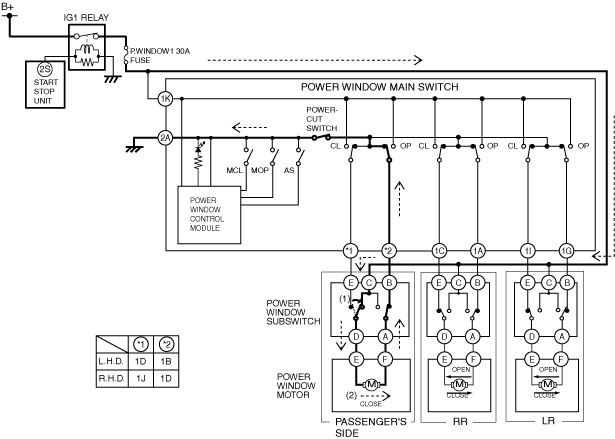

Operation of front passenger's side and rear open/close function (Example: manual close operation)

With auto-open/close function for driver-side window

1.  When the power window subswitch is operated for close operation, the close switch switches (1).

2.  When the close switch is on, the power window motor (passenger's side) performs close operation (2).

ac9wzn00001045

With auto-open/close function for all windows

1.  When the power window subswitch is operated for manual close operation, the manual close switch is switched (1).

2.  When the power window control module detects a manual close signal, current flows to the close relay (2) and the close relay turns on (3).

3.  When the close relay turns on, the power window motor performs close operation (4).

ac9uun00001804

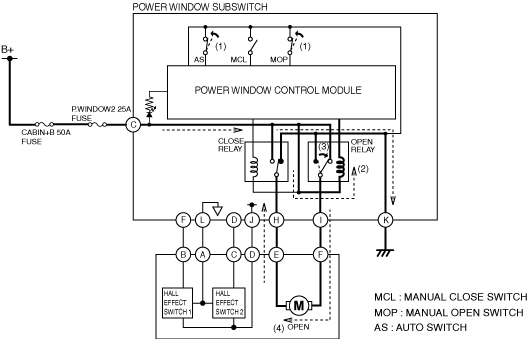

Operation of front passenger's side and rear auto open/close function (Example: auto open operation)

With auto-open/close function for all windows

1.  When the power window subswitch is operated for auto open operation, the auto switch and the manual open switch are switched (1).

2.  When the power window control module detects an auto open signal, current flows to the open relay (2) and the open relay turns on (3).

3.  When the open relay turns on, the power window motor performs auto open operation (4).

ac9uun00001805

Operation of auto reverse pinch protection function

•  If the power window control module detects a change in the pulse signal from the power window motor for 0.3 s during auto close operation, it reverses the power window motor operation and opens the door glass approx. 200 mm {7.87 in}.

Fully-closed position record function

With auto-open/close function for driver-side window

•  The power window control module records the driver's side door glass position when the switch is pulled and held approx. 2 s after the driver's side door glass is fully closed from the fully opened position with the ignition is switched ON (engine off or on).

With auto-open/close function for all windows

•  The power window control module records the position of each door glass when the switch is pulled and held for approx. 2 s after the door glass is fully closed from the fully opened position with the ignition switched ON (engine off or on).

Note

•  Performing the following procedures will reset the initial setting and disables auto operation. Re-perform the initial setting.

―  Negative battery cable is disconnected

―  Power window main switch connector is disconnected

―  Power window system power supply fuse is removed

Fail-safe
