POWER OUTER MIRROR SYSTEM

id091200013500

Outline

Function

Structure/Construction

Structural view

ac9wzn00001873

System wiring diagram

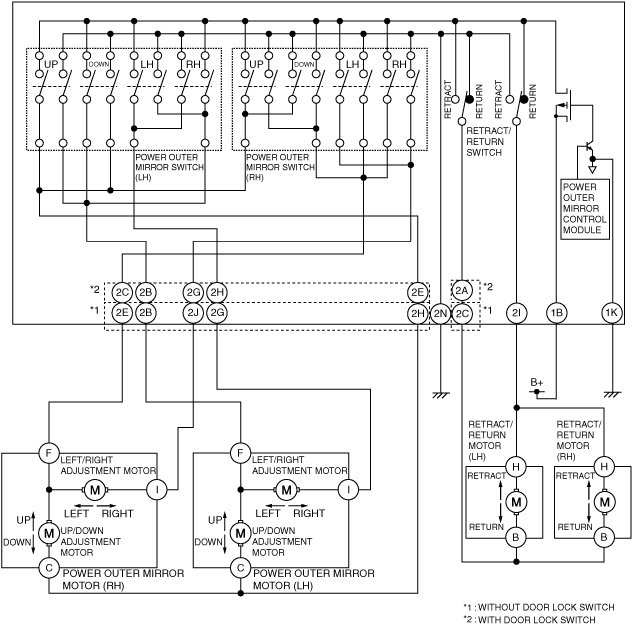

With retract/return function (Without outer mirror automatic folding)

ac9wzn00001870

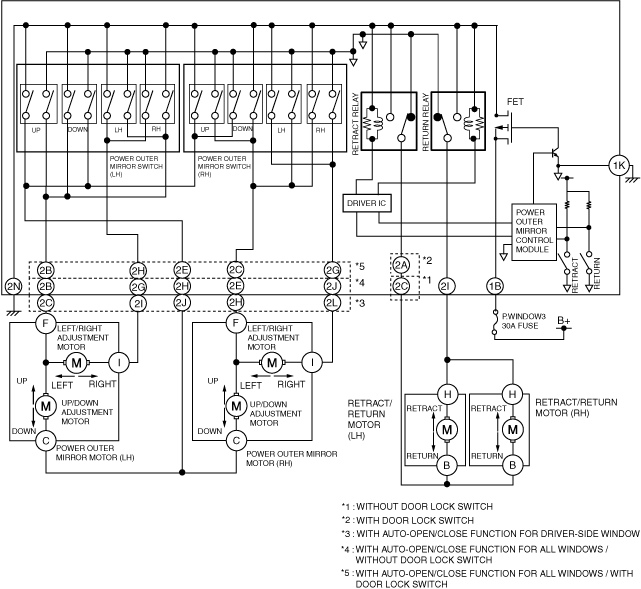

With retract/return function (With outer mirror automatic folding)

ac9wzn00002141

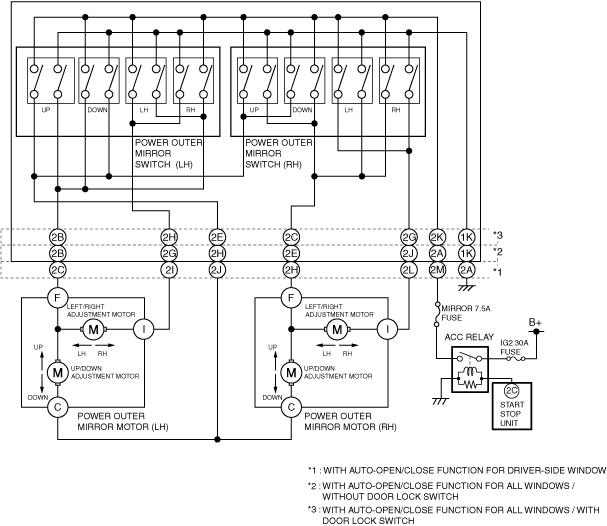

Without retract/return function

ac9wzn00001670

Operation

Mirror glass adjustment (Example: Left outer mirror is adjusted upward)

With retract/return function (Without outer mirror automatic folding)

1.  The power outer mirror control module turns the transistor on (1).

2.  The FET turns on when the transistor turns on and current flows (2).

3.  When the switch is turned on (3), the up/down adjustment motor moves in the upward direction (4).

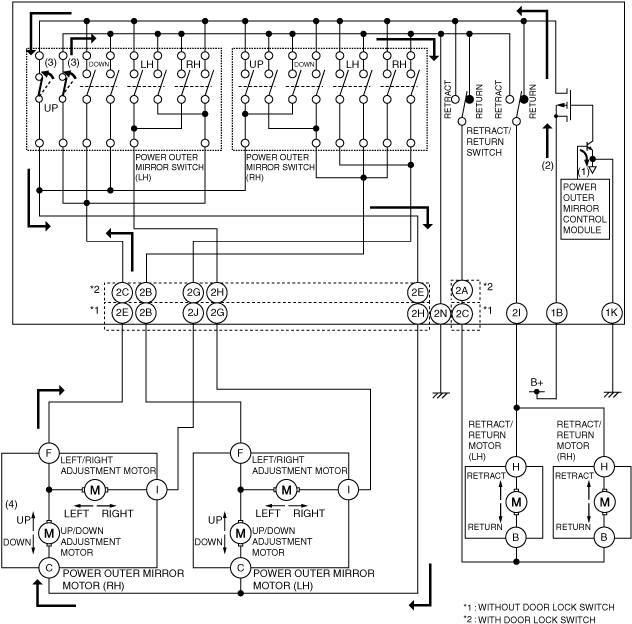

ac9wzn00001883

With retract/return function (With outer mirror automatic folding)

1.  The power outer mirror control module turns the transistor on (1).

2.  The FET turns on when the transistor turns on and current flows (2).

3.  When the upward switch is turned on (3), the up/down adjustment motor moves in the upward direction (4).

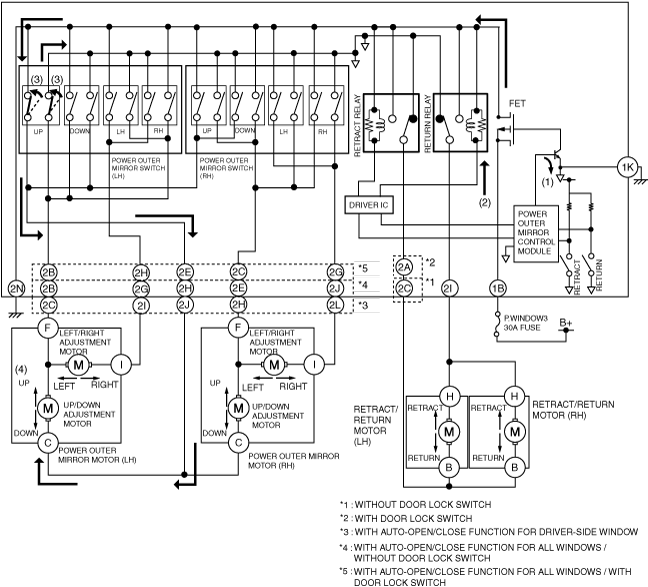

ac9wzn00002142

Without retract/return function

1.  When the upward switch is turned on (1), the up/down adjustment motor operates upward.(2)

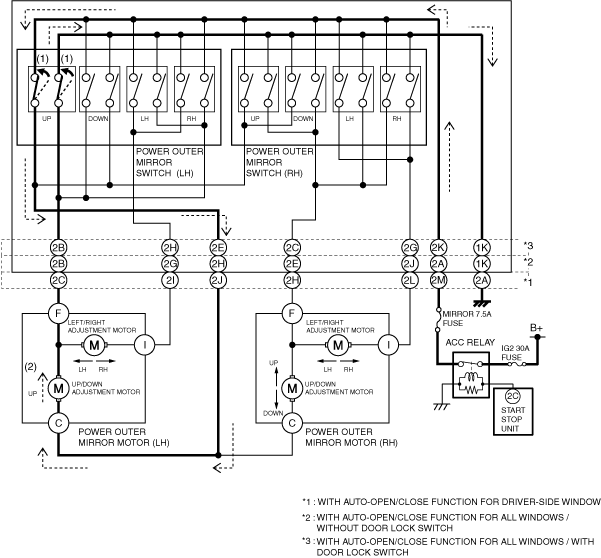

ac9wzn00001671

Outer mirror glass retract/return operation (Example: retracting outer mirrors)

With retract/return function (Without outer mirror automatic folding)

1.  The power outer mirror control module turns the transistor on (1).

2.  The FET turns on when the transistor turns on and current flows (2).

3.   When the switch is turned on (3), the retract/return motor operates in the retracting direction (4) and the outer mirrors retract.

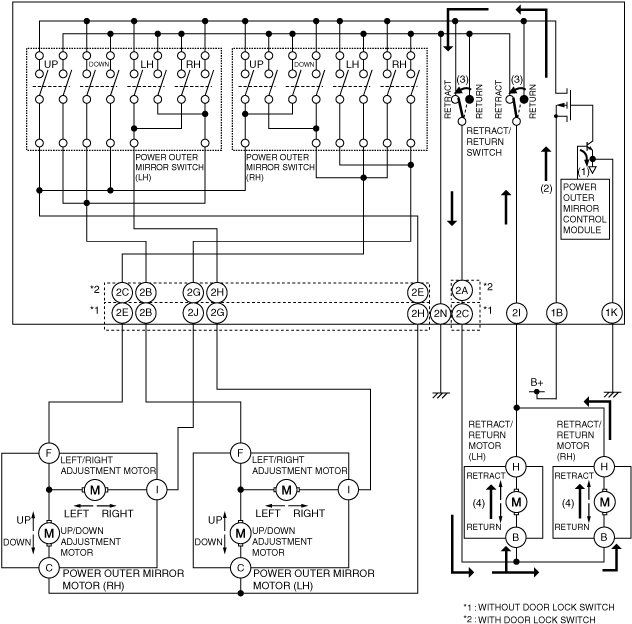

ac9wzn00001885

With retract/return function (With outer mirror automatic folding)

1.  The power outer mirror control module turns the transistor on (1).

2.  The FET turns on when the transistor turns on and current flows (2).

3.  When the retract side of the retract/return switch is turned on (3), current flows (4) to the retract relay coil and the retract relay turns on (5).

4.  When the retract relay turns on, the retract/return motor operates (6) in the retract direction and the outer mirrors retract.

ac9wzn00002143

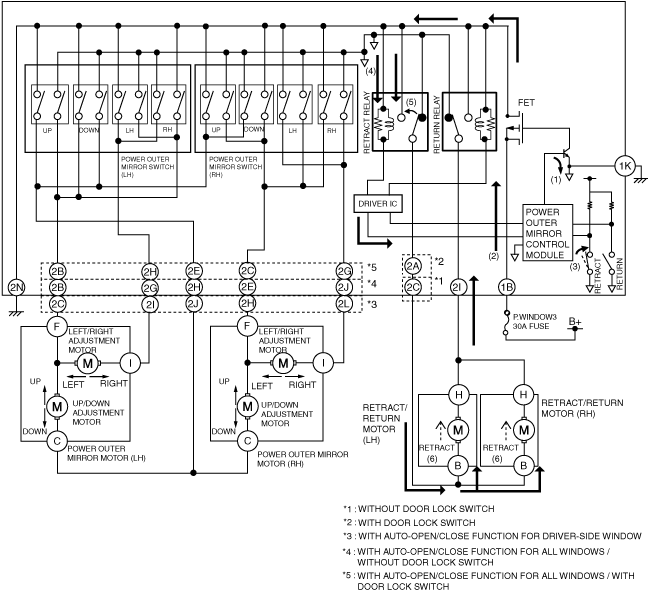

Power outer mirror retract operation (With outer mirror automatic folding) (Example: Retracting power outer mirrors automatically)

Operation condition

•  The power outer mirrors retract when the driver's door is locked with all of the following conditions met.

―  Outer mirror automatic folding switch is in AUTO position

―  Ignition switched OFF

―  Driver's door is unlocked

1.  When the power outer mirror control module detects (1) a lock signal, it turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the retract relay coil and the retract relay turns on (5).

4.  When the retract relay turns on, the retract/return motor operates (6) in the retract direction and the power outer mirrors retract.

ac9wzn00002144

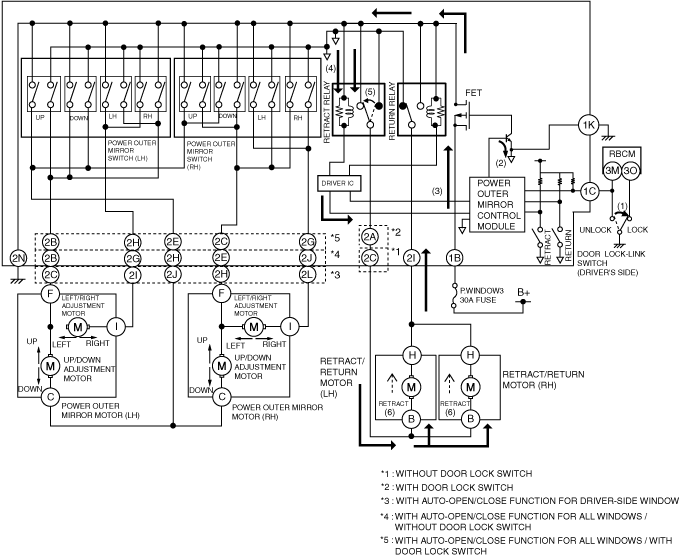

Power outer mirror return operation (With outer mirror automatic folding) (Example: Returning power outer mirrors automatically)

Operation condition

•  The power outer mirrors return when the driver's door is unlocked or the ignition is switched ON (engine off or on) with all of the following conditions met.

―  Outer mirror automatic folding switch is in AUTO position

―  Ignition switched OFF

―  Driver's door is locked

1.  When the power outer mirror control module detects (1) an unlock signal or the ignition switched ON (engine off or on), it turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the return relay coil and the return relay turns on (5).

4.  When the return relay turns on, the retract/return motor operates (6) in the return direction and the power outer mirrors return.

ac9wzn00002145

IG OFF timer operation

•  When the ignition is switched from ON (engine off or on) to OFF, the IG OFF timer function inside the power outer mirror control module is turned on and the power outer mirror switch can be operated for approx. 40 s after IG OFF is detected.

Fail-safe
