POWER OUTER MIRROR
id091200013600
Purpose
• The power outer mirror moves the outer mirror glass in the up/down and left/right directions using the up/down adjustment motor and left/right adjustment motor.
• The power outer mirror moves the outer mirror in the retract/return directions using the retract/return motor. (With retractable outer mirror)
Function
• The up/down adjustment motor and left/right adjustment motor turn clockwise (down/right direction) or counterclockwise (up/left direction).
• The retract/return motor turns clockwise (retract direction) or counterclockwise (return direction). (With retractable outer mirror)

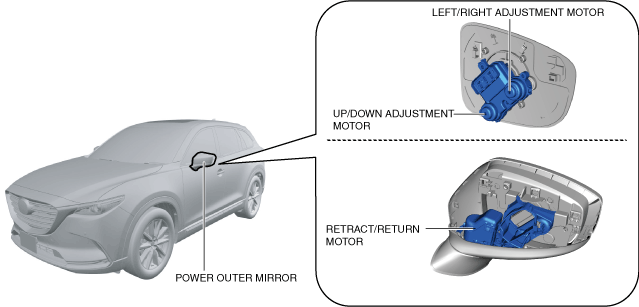

Structure/Construction
• The up/down adjustment motor and left/right adjustment motor are located on the outer mirror glass.
• The retract/return motor is located inside the power outer mirror. (With retractable outer mirror)
Operation

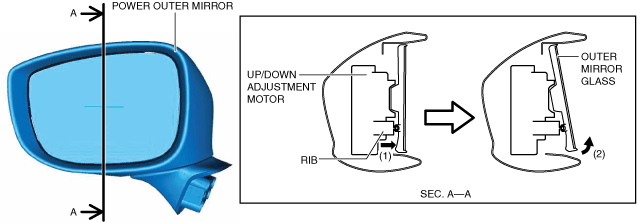

Up/down adjustment motor (Example: operating outer mirror glass upward)
1. When the up/down motor rotates, the rib projects (1).
2. The rib pushes up the outer mirror glass and the outer mirror glass operates upward (2).

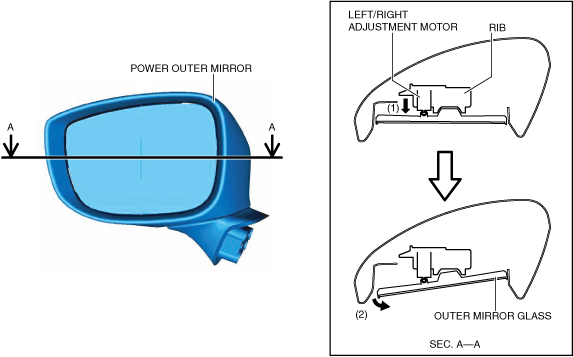

Left/right adjustment motor (Example: Operating outer mirror glass in left direction)
1. When the left/right motor rotates, the rib projects (1).
2. The rib pushes up the outer mirror glass and the outer mirror glass operates in the left direction (2).

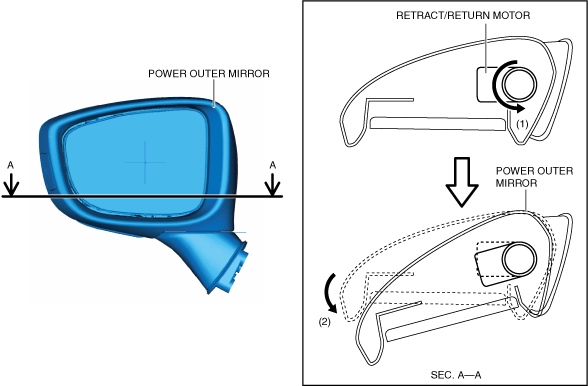

Retract/return motor (Example: retract operation) (With retractable outer mirror)
-
• When the motor rotates clockwise (1), the outer mirror operates in retract direction (2).
Fail-safe
• Not applicable
