• A full fold-down function has been adopted to provide a flat space.
• A top tether anchor has been adopted to the third-row seat on the right side to mediate injury to a child during a collision or emergency braking.

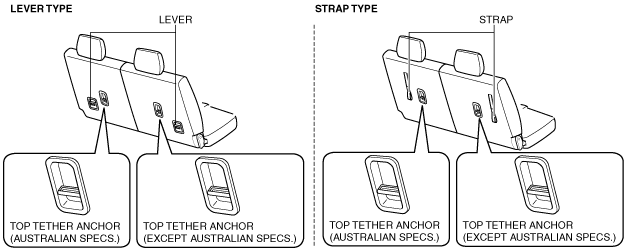

Structure/Construction
ac9wzn00001188
Operation
Full fold-down function

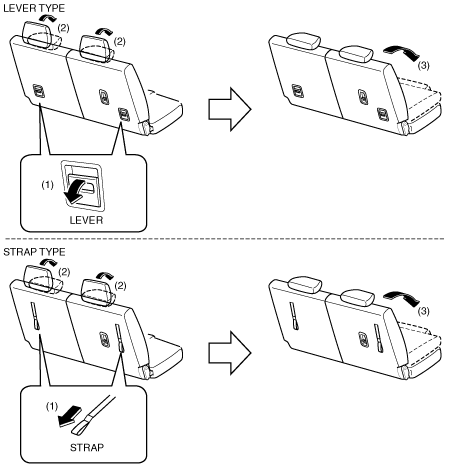

• The head restraints tilt in the direction of arrows (2) shown in the figure by pulling the third-row seat lever/strap in the direction of arrow (1). In addition, the third-row seat backs tilt in the direction of arrow (3) shown in the figure by pulling the lever/strap in the direction of arrow (1).
