SEAT

id091300009300

Outline

Front seat

•  Seats with side air bag modules have been adopted to soften the impact to the chest, abdominal, and lumbar areas of the occupants during a collision.

•  A seat warmer system has been adopted to provide occupants heating comfort. (With front seat warmer system)

•  A power seat system has been adopted to adjust the seat electrically. (With power seat system)

•  An occupancy sensor has been adopted to the seat on the passenger's side to determine the seating condition of the front passenger seat.

•  A seat ventilation system has been adopted to provide occupants heating comfort. (With seat ventilation system)

•  A walk-in mechanism has been adopted to the second-row seat with which passengers can easily access the third-row seat.

Second-row seat

•  6:4 split folding-type second-row seat has been adopted with which the luggage compartment can be adjusted according to the size or amount of the luggage.

•  The following parts have been adopted to the second-row seat to mediate injury to a child during a collision or emergency braking.

―  ISOFIX anchor

―  Top tether anchor

•  A seat warmer system has been adopted on the second-row seats. (With rear seat warmer system)

Third-row seat

•  A full fold-down function has been adopted to provide a flat space.

•  A top tether anchor has been adopted to the third-row seat on the right side to mediate injury to a child during a collision or emergency braking.

Specification

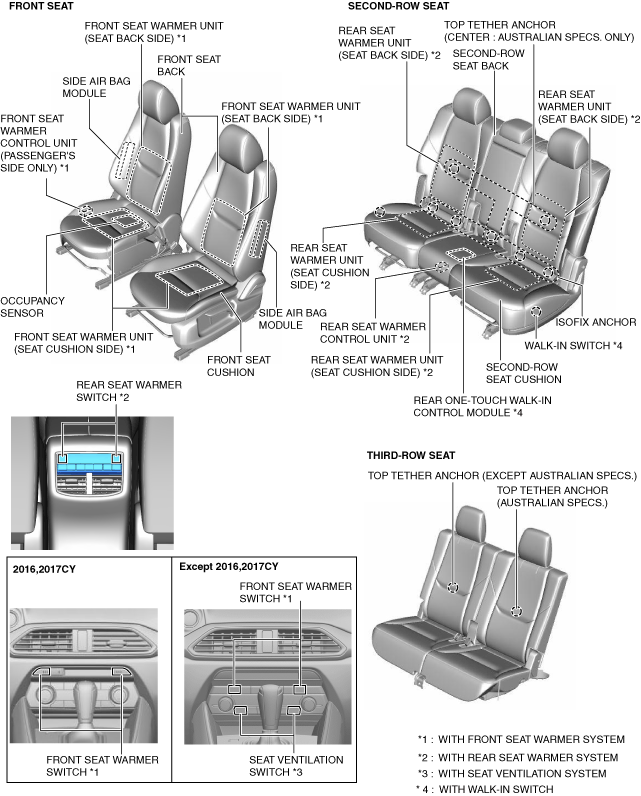

Structural view

ac9wzn00001189
