LIFTGATE OPENER SYSTEM

id091400107300


Outline

•  A liftgate opener system has been adopted in which the liftgate can be opened just by pressing the liftgate opener switch.

Function

•  When the liftgate opener switch is pressed, the liftgate lock actuator operates to open the liftgate.

Structure/Construction

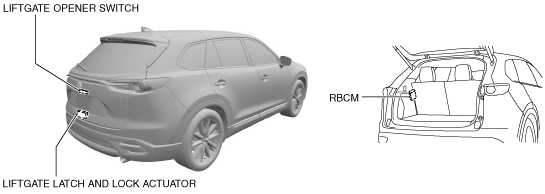

Structural view

ac9wzn00001196

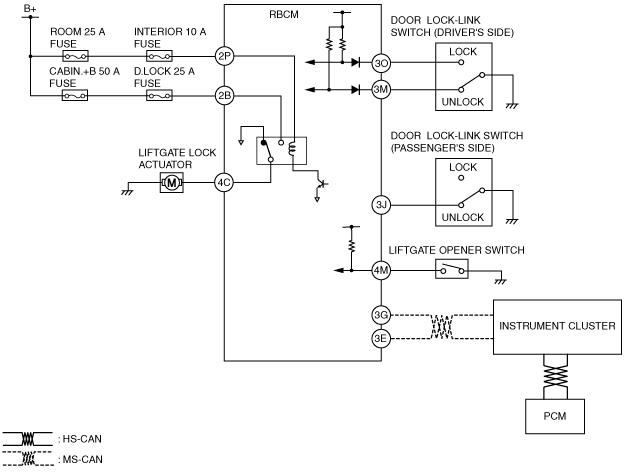

System wiring diagram

ac9uun00001514


Operation

•  When the rear body control module (RBCM) detects the liftgate opener switch on signal while the door lock-link switch (driver's side and passenger's side) unlock signals (driver's and passenger's door locks unlocked) are detected and the theft-deterrent system is not operating with any of the following conditions met, it opens the liftgate.
Operation Conditions
―  Vehicle speed of 3 km/h {2 mph} or less received
―  Ignition switched OFF

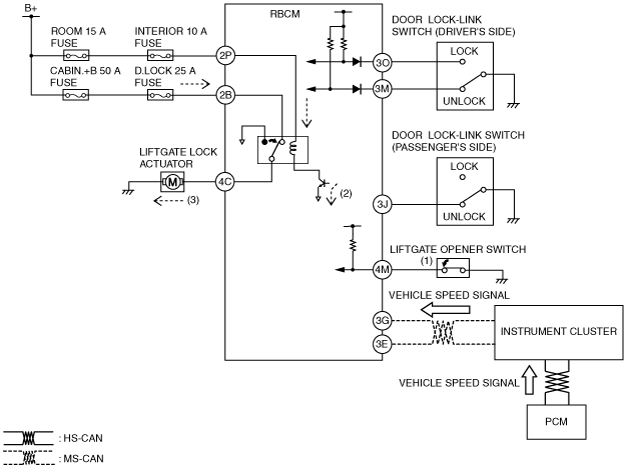

1.  When the liftgate opener switch is pressed, it turns on (1).

2.  When the operation condition of the liftgate opener system is met, the rear body control module (RBCM) turns the transistor on (2) and turns on the liftgate release relay.

3.  When the liftgate release relay turns on, the liftgate lock actuator operates (3).

4.  When the liftgate lock actuator operates, the latch lever is freed and the liftgate lifts up simultaneously via the spring force of the liftgate weatherstrip and stopper rubber, and opens.

ac9uun00001515
