IMMOBILIZER SYSTEM
id091400107700
Outline
• The immobilizer system is a vehicle theft prevention device that only allows remote transmitters that have been previously programmed to the vehicle to start the engine.
Structure/Construction

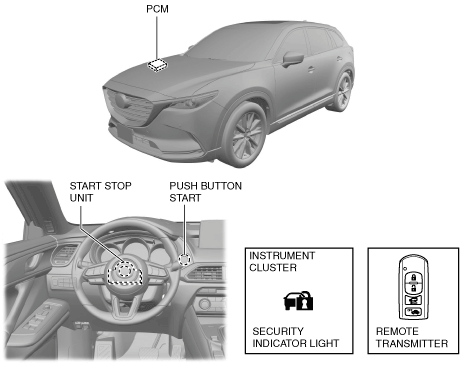

Structural view

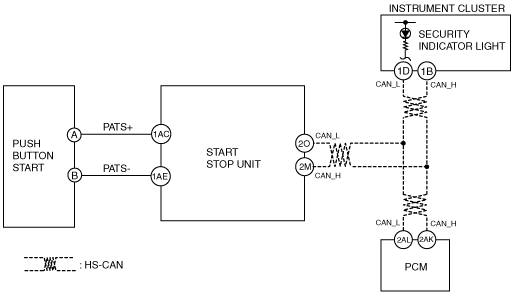

System wiring diagram
Function
• The immobilizer system-related parts programmed to the immobilizer system have a programmed key ID number, and starting the engine is only permitted when the key ID number matches.
• Immobilizer system-related parts can be programmed using the Mazda Modular Diagnostic System (M-MDS).
• A maximum 6 remote transmitters can be programmed to one vehicle.
• If the following parts are replaced, it is necessary to program them to the immobilizer system.
-
― Remote transmitter (transponder)
― PCM
― Start stop unit
Key code read function
-
• The coil antenna is integrated with the push button start.

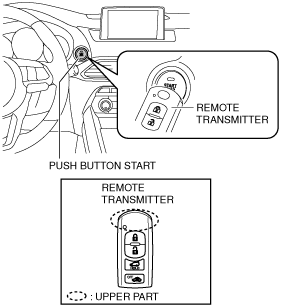

• By touching the upper part of the remote transmitter to the push button start, the coil antenna reads the key code from the transponder integrated with the remote transmitter.

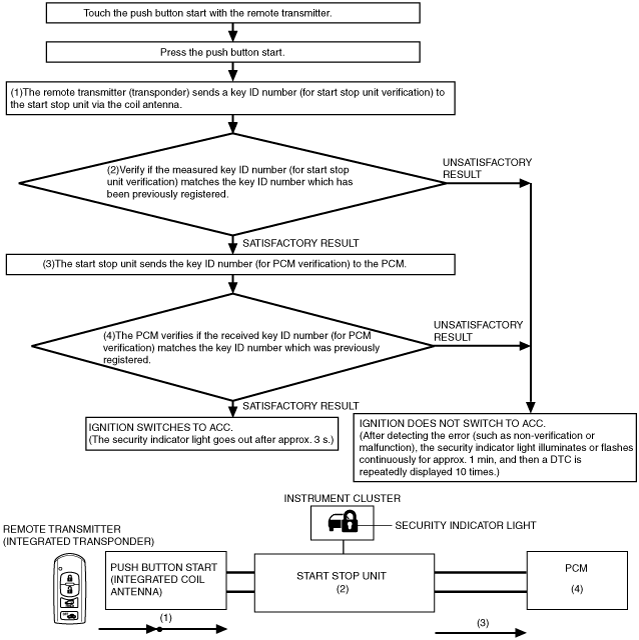

Operation
• Operate in the following order to allow engine starting.
