SECURITY AND LOCKS


id091400108100


Outline

•  A power door lock system has been adopted in which all doors are locked/unlocked using the door lock switch, or the door key cylinder is operated.
•  A liftgate opener system has been adopted in which the liftgate can be opened just by pressing the liftgate opener switch.
•  A keyless entry system has been adopted in which locking/locking is performed by operation of the remote transmitter button, even from a location away front the vehicle. (With keyless entry system)
•  An advanced keyless entry system has been adopted which performs automatic authorization of the remote transmitter that is carried and locking/unlocking of the doors. (With advanced keyless entry system)
•  A push button start system has been adopted that automatically performs authorization of the remote transmitter brought into the vehicle.
•  An immobilizer system has been adopted that only allows remote transmitters that have been previously programmed to the vehicle to start the engine.
•  A theft-deterrent system has been adopted which activates the theft-deterrent siren or theft-deterrent horn if a door, the liftgate, or the bonnet is opened improperly. (With theft-deterrent system)

Structural View

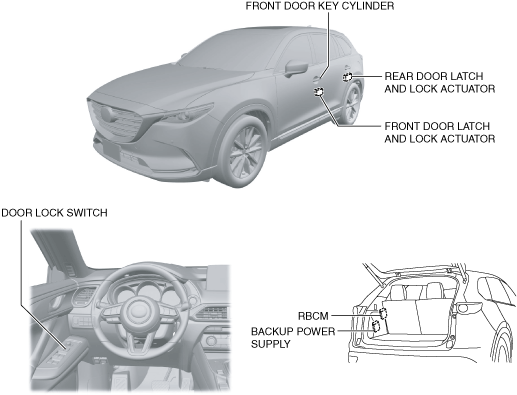

Power door lock system

ac9wzn00001862

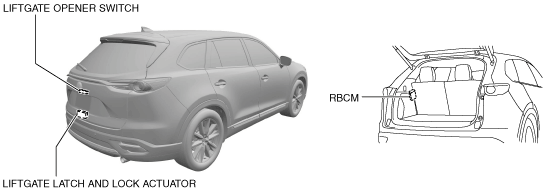

Liftgate opener system

ac9wzn00001199


Advanced keyless entry system / Push button start system / Immobilizer system

ac9wzn00001200

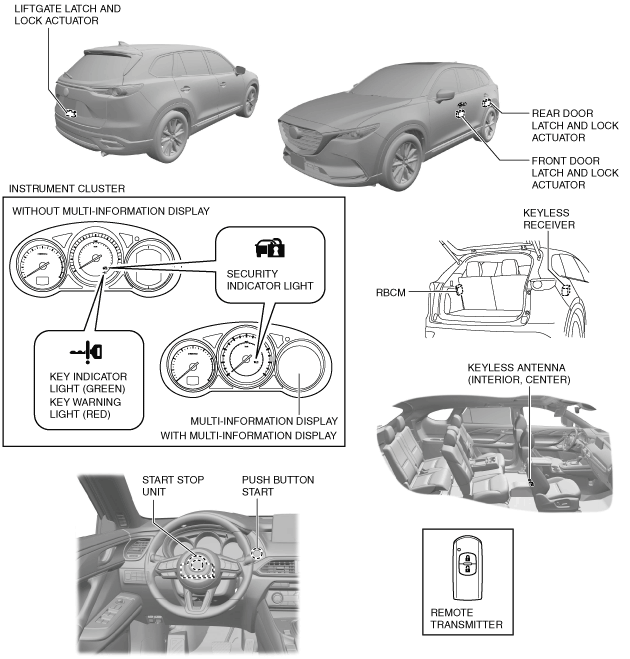

Keyless entry system / Push button start system / Immobilizer system

ac9wzn00001201


Theft-deterrent System

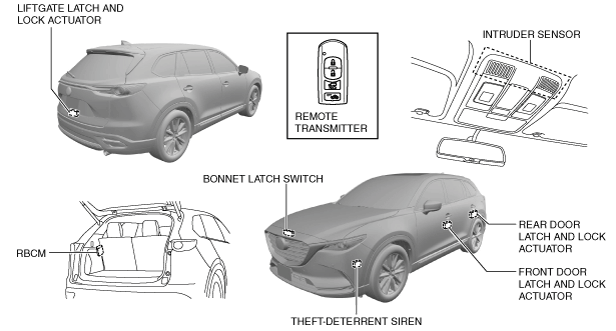

With intruder sensor

ac9wzn00001202

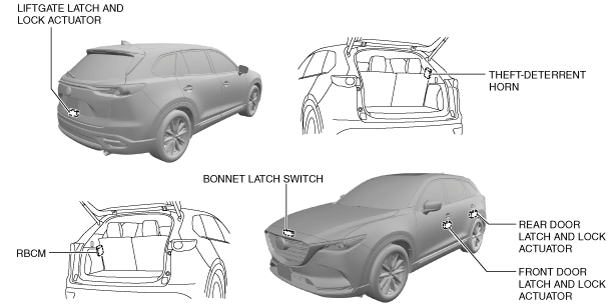

Without intruder sensor

ac9wzn00001203
