LF CONTROL UNIT

id091400111400

Purpose

• The keyless beeper and keyless antenna are controlled by the input/output signals from the start stop unit.

Function

• The LF control unit controls the keyless beeper sound based on the signal from the start stop unit.

• The LF control unit sends the request signal from the keyless antenna based on the signal from the start stop unit.

Structure/Construction

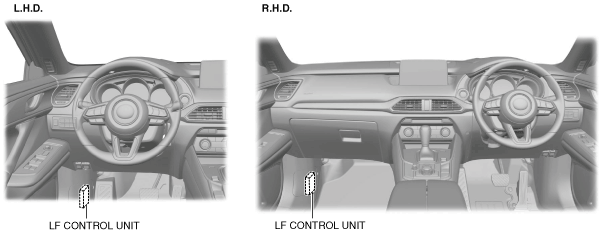

• The LF control unit is located on the inside of the front side trim.

ac9wzn00001226

Operation

Keyless beeper control

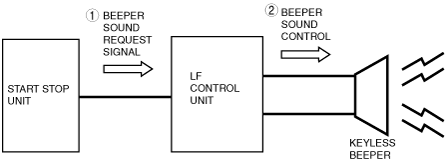

1. The LF control unit receives (1) a beeper sound request signal from the start stop unit.

2. When the LF control unit receives the beeper sound request signal, it sounds (2) the keyless buzzer.

ac9uun00002278

Keyless antenna control

1. The LF control unit receives (1) a request output signal from the start stop unit.

2. When the LF control unit receives the request output signal, it outputs (2) the request signal from the keyless antenna.

ac9uun00002279

Fail-safe

• Not applicable
