SUNROOF MOTOR
id091500101400
Purpose/Function
• The sunroof motor transmits drive force to the drive cables.
• When the sunroof motor rotates normally or in reverse, the tilt up and open/close of the glass panel operates.
Construction/Operation

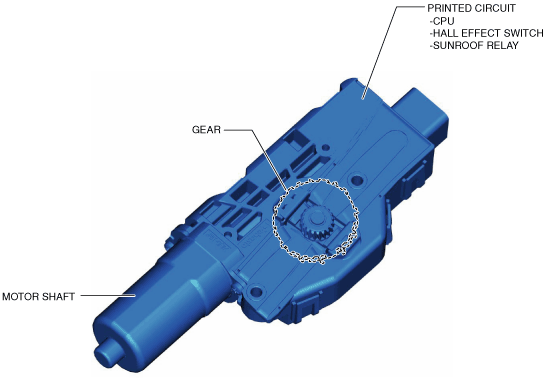

• The sunroof motor built-in the following parts:
-
― CPU
― Hall effect switch
― Sunroof relay
― Motor shaft
― Gear
• Two hall effect switches are provided in the control part.
• The CPU detects the glass panel position according to the signals from the two Hall ICs.
Fail-safe
• Not applicable
