LIFTGATE GARNISH REMOVAL/INSTALLATION

id091600445800

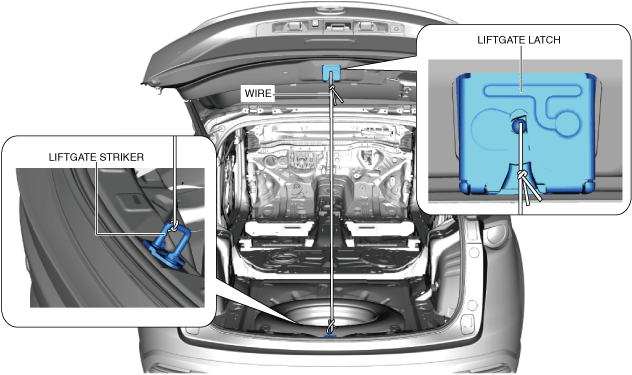

1.  Attach a piece of wire between the liftgate striker and liftgate latch to hold the liftgate in the half-opened position as shown below.

ac9wzw00004461

Warning

•  Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.

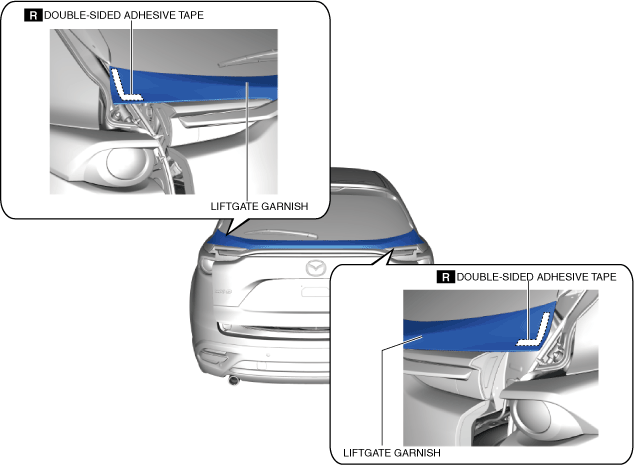

2.  Peeling off the double-sided adhesive tape shown in the figure using a utility knife.

ac9uuw00006962

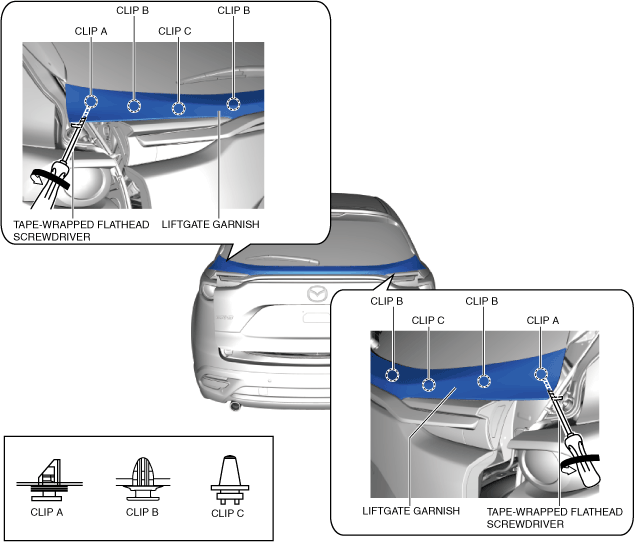

3.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, rotate it in the direction of the arrows and detach the liftgate garnish clips A, B, and C.

ac9uuw00006963

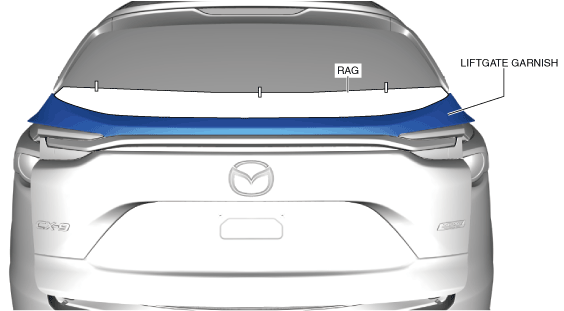

4.  Affix rag using tape to the position shown in the figure.

ac9uuw00006964

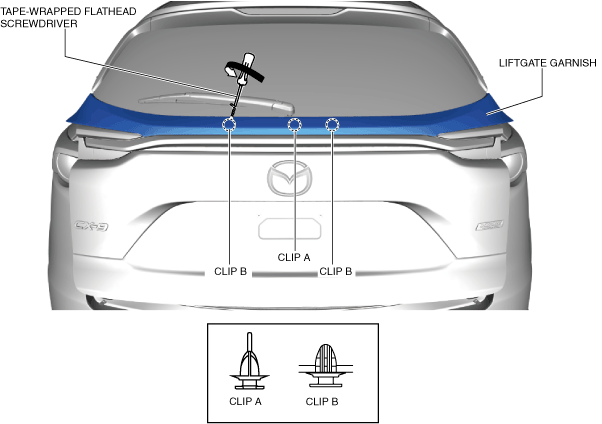

5.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, rotate it in the direction of the arrow and detach the liftgate garnish clips A and B.

ac9uuw00006965

6.  Remove the liftgate garnish.

7.  Install in the reverse order removal.
