LIGHTING SYSTEMS

id091800010000


Outline

•  Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
•  The following systems have been adopted to the headlights.
―  Auto light system (with auto light system)
―  Headlight auto leveling system
―  Running light system
―  Coming home light
―  Leaving home light
•  Front fog lights have been adopted. (With front fog lights)
•  Rear fog light has been adopted. (With rear fog light)
•  Emergency signal system (ESS) has been adopted.
•  A room light control system has been adopted in which illumination time and illumination level of the room lights change.

Specification

Item

Bulb specification (UNECE (SAE))

Spec (W) × Quantity
Exterior
Front combination light (without adaptive LED headlights)
Headlight HI/LO
LED*1
48 / 43 × 2
Parking light
W5W (4CP)
5 × 2
Front turn light
WY21W (7443NA)
21 × 2
Running light
W21W (7440)
21 × 2
Front combination light (with adaptive LED headlights)
Headlight HI
LED*1
48 × 2
Headlight LO
LED*1
29 × 2
Parking light/Running light
LED*1
2.88 / 25.68 × 2
Front turn light
LED*1
22.8 × 2
Front fog light (with front fog light)
LED*1
8.4 × 2
Rear fog light (with rear fog light)
W21W (7440)
21 × 1
Side turn light
LED*1
2 × 2
Rear combination light (Type A)
Rear turn light
WY21W (22.3CP)
21 × 2
Brake light/Taillight
LED*1
4.74 / 2.796 × 2
Rear combination light (Type B)
Rear turn light
WY21W (22.3CP)
21 × 2
Brake light/Taillight
LED*1
8.2 / 5.2 × 2
Liftgate light (Type A)
Back-up light
W16W (921)
16 × 2
Liftgate light (Type B)
Back-up light
W16W (921)
16 × 2
Taillight
LED*1
1.5 × 2
High-mount brake light
LED*1
1.82
License plate light
W5W (4CP)
5 × 2
Interior
Front courtesy light
LED
0.108 × 2
Rear courtesy light (with rear courtesy light)
LED
0.108 × 2
Front map light (bulb type)
— (—)
8 × 2
Front map light (LED type)
LED
1 × 2
Center map light (bulb type)
— (—)
8 × 2
Center map light (LED type)
LED
1 × 2
Rear map light (bulb type)
— (—)
10 × 1
Rear map light (LED type)
LED
1 × 1
Cargo compartment light
— (—)
8 × 1
Power window switch ambient light (with power window switch ambient light)
LED
0.108 × 2
Console ambient light (with console ambient light)
LED
0.132
Vanity mirror illumination (with vanity mirror illumination)
— (—)
2 × 2

*1   :The LED for each light cannot be replaced separately. If there is any malfunction in the LED, replace each light as a single unit.

Structure/Construction


System structure

Exterior

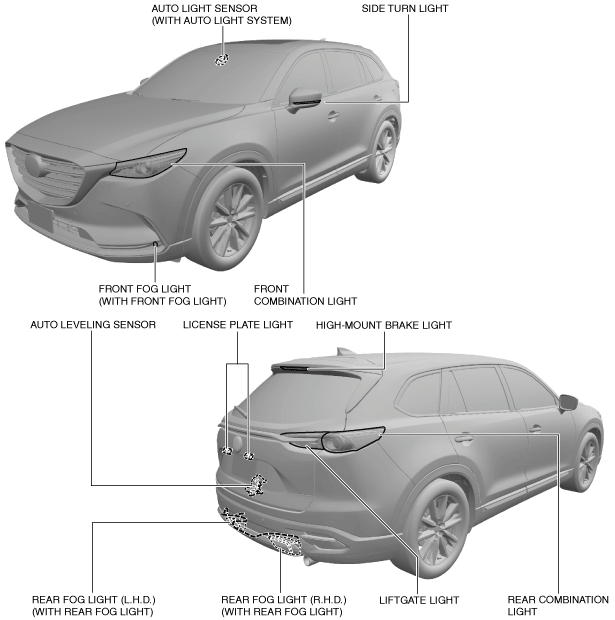

ac9wzn00001265

Interior

ac9uun00001812
