•  Visibility during poor weather conditions such as rain and fog has been improved by the front fog lights emitting light over a wider angle than the light from the headlights. In addition, the visibility of the vehicle by on-coming vehicles, pedestrians, and other people has been improved.

•  When the front body control module (FBCM) receives the front fog light signal sent via CAN communication from the start stop unit, it turns the front fog lights on.

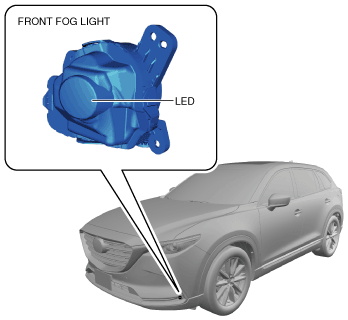

•  The front fog lights are positioned in the front bumper.

•  Round-type front fog lights have been adopted.

•  LED type front fog lights have been adopted.

1.  When all of the following conditions are met, the start stop unit detects (1) the front fog light signal.

2.  The start stop unit sends (2) the front fog light signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the front fog light signal, it turns the front fog light relay on (3).

4.  When the front fog light relay turns on, the front fog light turns on (4).

•  Not applicable
