•  The license plate light turns on when the light switch is moved to the TNS (parking lights) or HEAD position.

•  The front body control module (FBCM) turns the license plate light on based on the TNS (parking lights) signal sent via CAN communication from the start stop unit.

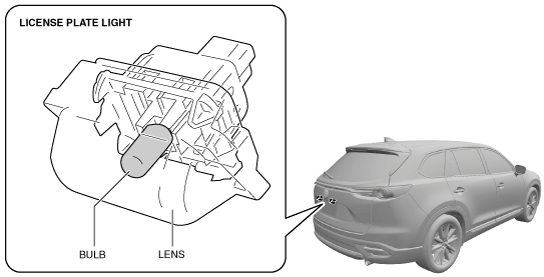

•  The license plate light is positioned on the liftgate.

ac9wzn00001288

1.  When the light switch is moved to the TNS (parking lights) or HEAD position, the start stop unit detects (1) a TNS (parking lights) signal.

2.  The start stop unit sends (2) the TNS (parking lights) signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the TNS (parking lights) signal, it turns the license plate light on (3).

•  Not applicable
