CENTER MAP LIGHT

id091800015900

Purpose

• The center map light shine light at the center of the vehicle interior.

Function

• The rear body control module (RBCM) detects the on/off of the rear map light switch and controls the on/off of the rear map light.

• The center map light illuminate according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the room light switch for front map light is in the DOOR position. (Bulb type)

• The center map light illuminate according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the interior light door open interlock switch for front map light is on. (LED type)

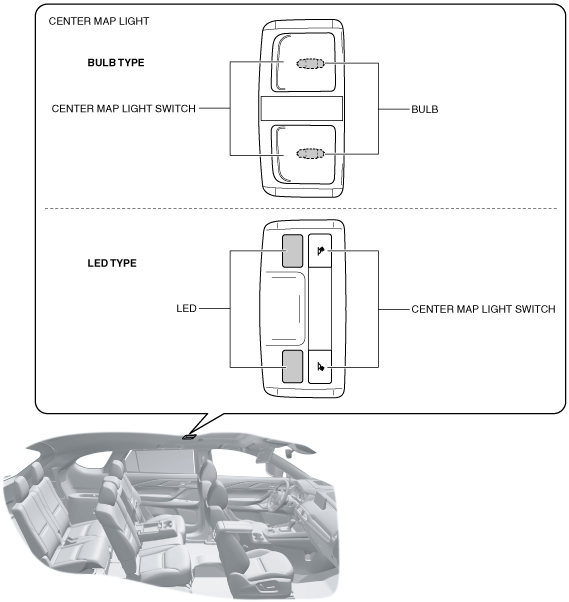

Structure/Construction

• A bulb type or LED type is available for the center map light.

• The center map light are assembled to the headliner.

ac9wzn00002033

Operation

Note

• When the rear body control module (RBCM) receives a lock signal on the remote transmitter with the ignition switched off and all doors liftgate closed, it automatically turns the rear map light off.

Bulb type

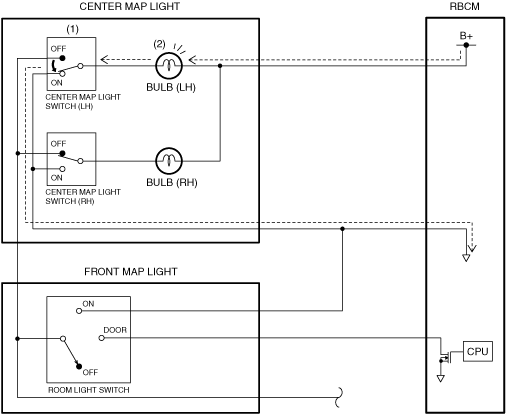

Rear map light switch operation

1. When the rear map light switch is on (1), the rear map light turns on (2).

ac9wzn00001989

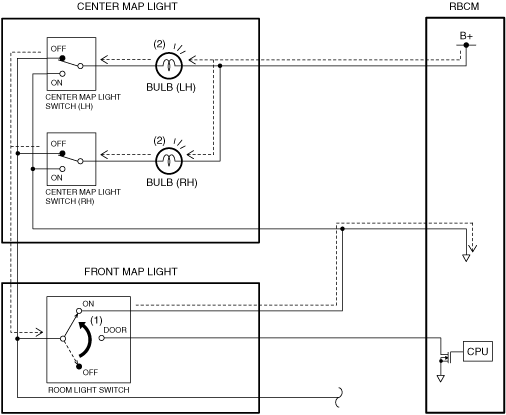

Room light switch for front map light operation (ON position)

1. When the room light switch for the front map light is in the ON position (1), the center map light turn on (2).

ac9wzn00001993

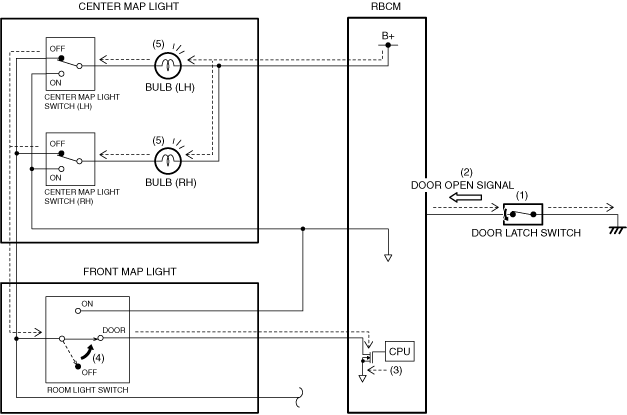

Room light switch for front map light operation (DOOR position)

1. When any door is opened (1), the rear body control module (RBCM) detects (2) a door open signal.

2. When the rear body control module (RBCM) detects the door open signal, it turns the transistor on (3).

3. When the transistor is on with room light switch for front map light at the DOOR position (4), the center map light turn on (5).

Note

• When the room light switch for front map light is in the DOOR position, the room light control system controls the timing for turning the rear map light on and off. For details, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)

ac9wzn00001994

LED type

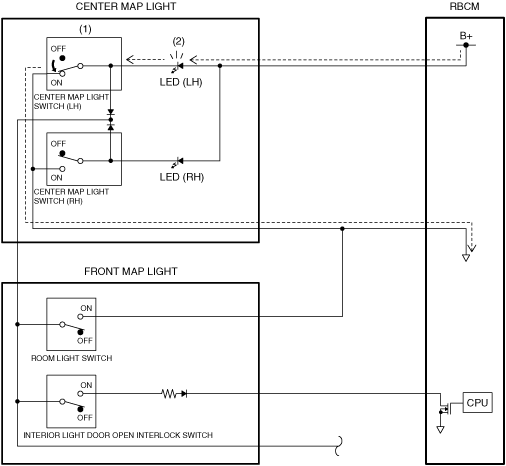

Rear map light switch operation

1. When the rear map light switch is on (1), the rear map light turns on (2).

ac9wzn00001990

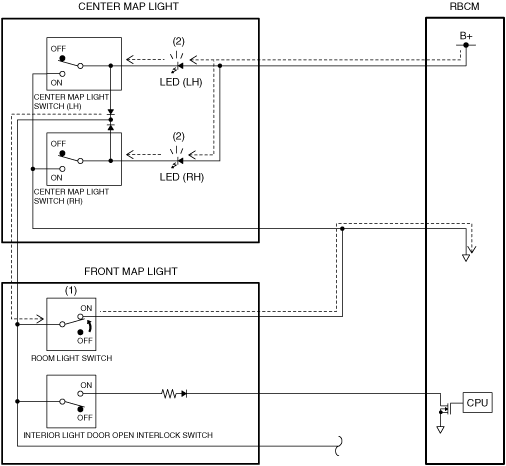

Room light switch for front map light operation

1. When the room light switch for the front map light is on (1), the center map light turn on (2).

ac9wzn00001991

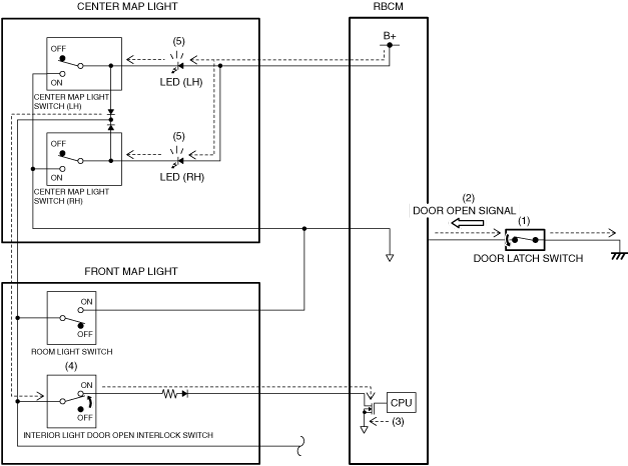

Interior light door open interlock switch for front map light operation

1. When any door is opened (1), the rear body control module (RBCM) detects (2) a door open signal.

2. When the rear body control module (RBCM) detects the door open signal, it turns the transistor on (3).

3. When the transistor is on with interior light door open interlock switch for front map light on (4), the center map light turn on (5).

Note

• When the interior light door open interlock switch for front map light is on, the room light control system controls the timing for turning the rear map light on and off. For details, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)

ac9wzn00001992

Fail-safe

• Not applicable
