HEADLIGHT CLEANER SYSTEM

id091900103400


Outline

•  The headlight cleaner system injects washer fluid from the headlight cleaner nozzles equipped on the front bumper to remove dirt from the headlights.
•  A pop-up type headlight cleaner has been adopted.

Function

•  With the ignition switched ON (engine off or on) and the headlights turned on, the front body control module (FBCM) operates the headlight cleaner system according to the windshield washer switch operation.
•  The headlight cleaner actuator is activated by the pressure of the washer fluid supplied from the headlight cleaner motor, the washer fluid is injected from the headlight cleaner nozzles.
―  Auto operation control
•  When the windshield washer switch on signal is detected the first time with the headlights turned on, the headlight cleaner system operates.
―  Manual operation control

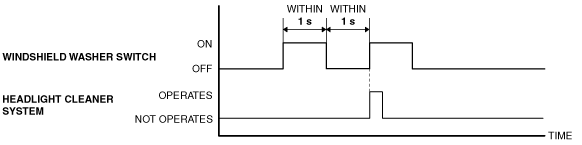

•  When the windshield washer switch is on two times within the range shown in the figure, the headlight cleaner system operates.
ac3wzn00000512

Structure/Construction

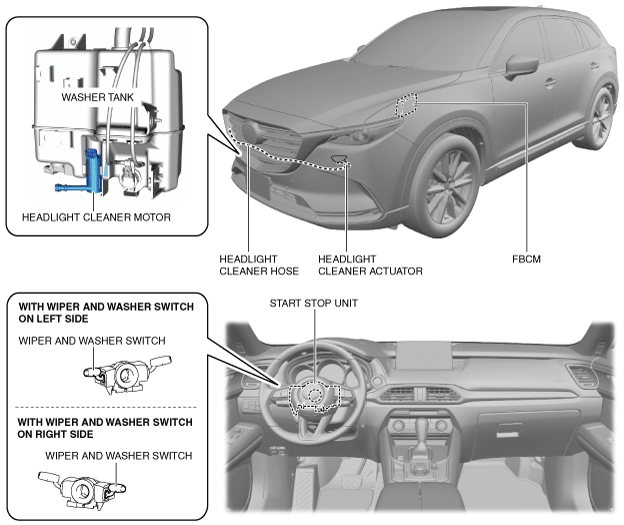

System structure

ac9wzn00001368

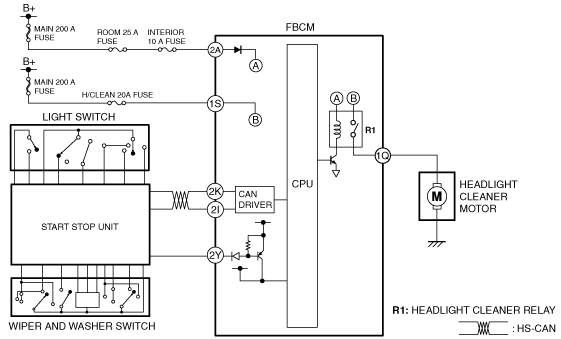

System wiring diagram

ac9wzn00001369


Operation


Auto operation

Operation condition
•  The headlight cleaner system operates when the following conditions are met.
―  Ignition is switched ON (engine off or on)
―  Headlights are turned on at LO or HI
―  After above conditions are met, windshield washer switch is on the first time
Operation

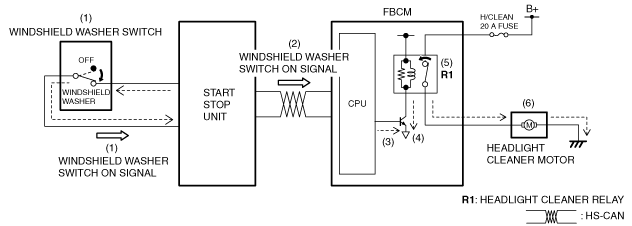

1.  When the windshield washer switch is turned on (1), the start stop unit sends (2) a windshield washer switch on signal to the front body control module (FBCM) via CAN communication.
2.  When the front body control module (FBCM) receives a windshield washer switch on signal the first time with the operation conditions met, it turns the transistor on (3).
3.  When the transistor turns on, a ground circuit with the headlight cleaner relay is established (4), and the headlight cleaner relay turns on (5).
4.  When the headlight cleaner relay is on, the headlight cleaner motor is activated (6) and washer fluid is injected from the headlight cleaner nozzles.
ac9wzn00001370


Manual operation

Operation condition
•  The headlight cleaner system operates when the following conditions are met.
―  Ignition is switched ON (engine off or on)
―  Headlights are turned on at LO or HI
―  After above conditions are met, windshield washer switch is on two times within a certain period of time
Operation
1.  When the windshield washer switch is on (1), the start stop unit sends (2) an windshield washer switch on signal to the front body control module (FBCM) via CAN communication.
2.  When the front body control module (FBCM) receives the windshield washer switch on signal two times within a certain period of time with the operation conditions met, it turns the transistor on (3).
3.  When the transistor turns on, a ground circuit with the headlight cleaner relay is established (4), and the headlight cleaner relay turns on (5).
4.  When the headlight cleaner relay is on, the headlight cleaner motor is activated (6) and washer fluid is injected from the headlight cleaner nozzles.
ac9wzn00001370
